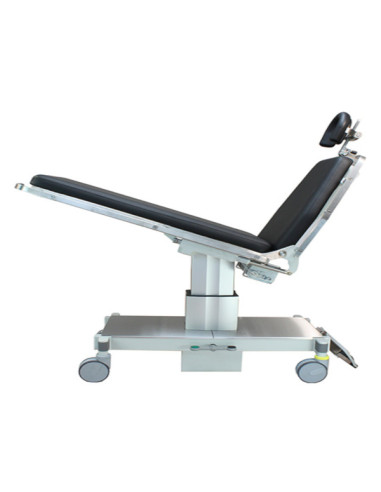

Mobile surgical chair for head surgery SB5010HS biplan

The mobile, electric SB 5010 HS surgical table is specifically designed for various applications
including but not limited to ophthalmology, ENT, maxillofacial surgery, plastic,
reconstructive and aesthetic surgery.
Surgeons appreciate the unrestricted accessibility to the surgical area and ergonomic benefits
of the surgical table for both, the medical staff and patients.

The tables are offered in different heights for certain medical specialties.
- ES ophthalmology 52 - 78 cm
- HS head surgery 64 - 100 cm
Special advantage:
- Very low ingress level of 64 cm
- 50 mm electric lift of head rest when back rest horizontal
Elderly, handicapped or wheelchair patients can get easily into and out of the surgical table.
In ENT, maxillofacial surgery, plastic, reconstructive and aesthetic surgical procedures
the high vertical lift from 64 cm to 100 cm supports both,
seated down or standing up procedures.

Features and Functions:
- Chair height min 640 mm ? max 980 mm
- Hand held control unit for 5 electric movements
- 6 Memory positions
- Electric actuated head rest
- Trendelenburg position available
- Integrated battery with Re charger unit totally mobile and line power independent.

Technical Data:
Length wheel base (backrest up) 970mm
Width wheel base 580mm
Width chair incl. attachment rails 700mm
Width seat cushion 590mm
Length seat cushion 990mm
Length back rest (w/o head rest) 610mm

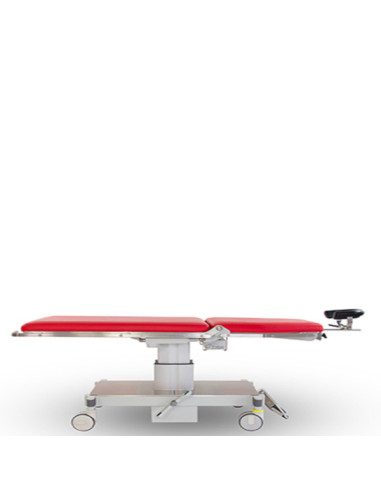

Max. length bed, back rest horizontal 1871mm
Max. patient weigh 300 kg
Chair weight (depending on options) 118 kg
Vertical lift

SB 5010 HS (head surgery)
Height min. 640mm
Vertical lift 350mm
Max. height 990mm

Range back rest
Horizontal to vertical 0-85?
Shock position below horizontal -20?

Wheel base
3 Pos. Brake system
All wheel pivoting
All wheel locked
1 wheel fixed for steering
Wheel diameter 125mm

Electrical data
Battery 24 (2,9) Volt (Ah)
Line power for re charger 100-240 Volt
Recharging time 4h
Nominal frequency 50 ? 60 Hz
Nominal power 400mA
Protection category IP 65
