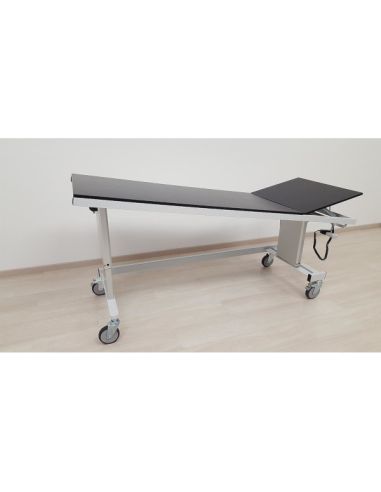

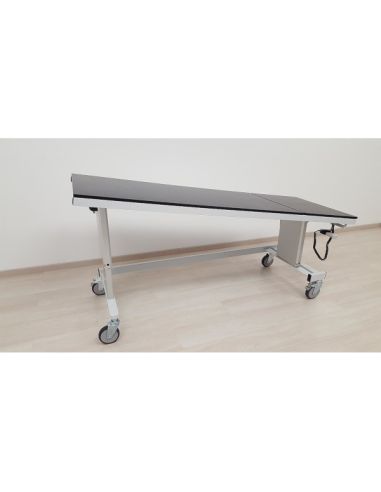

Height adjust traumatology stretcher 2 sections tilt adjustable C45 Height 550 to 800mm tilt adjustment +/- 11°
C45 bi-plane radiolucent trauma stretcher tilt adjustable
X-ray radiotransparent stretcher trolley intended for trauma examinations in emergency and imaging departments.
The AGA-POWER-LIFT DUO tables (with electrical height adjustment and tilt adjustable) have been specially designed for use in the field of radiology. One of their main
characteristics is the absence of a longitudinal bar on the front part of the chassis, which makes the positioning of an amplifier
semi-circular arc (C) brilliance easily possible.
The mobile traumatology trolley is equipped with a radiotransparent surface on a surface of 1300x600mm and thus allows the use of an operating room amplifier or a radiology mobile during emergency images or interventional procedures.
The height is ensured by two synchronous IP65 rated electric actuators, controlled by wired remote control.
The stretcher is equipped with 4 large wheels with a diameter of 125mm, two of which have brakes with centralized braking by foot control. The wheels ensure easy and precise movement of the stretcher in the presence or absence of a patient.
As an option, the stretcher can accommodate 1 pair of 25x10 medical rails 170cm long or a decontaminable comfort mattress 40mm thick with attachment to the trolley using Velcro straps.
Adjustable height from 550-800 mm.
Weight supported 150kg
Additional technical information:
Plate thickness: 15mm
Radiolucent surface: 1300x600mm
Tilt adjustment +/- 11?
Power supply: 230VAC - 50Hz - 6A
Power: 240 Watts
Elevation speed: 16mm per second (2 x 1000 Newton)
Net weight: 90kg
Standards: IPX6 - CE
X-ray radiotransparent stretcher trolley intended for trauma examinations in emergency and imaging departments.
The AGA-POWER-LIFT DUO tables (with electrical height adjustment and tilt adjustable) have been specially designed for use in the field of radiology. One of their main
characteristics is the absence of a longitudinal bar on the front part of the chassis, which makes the positioning of an amplifier
semi-circular arc (C) brilliance easily possible.
The mobile traumatology trolley is equipped with a radiotransparent surface on a surface of 1300x600mm and thus allows the use of an operating room amplifier or a radiology mobile during emergency images or interventional procedures.
The height is ensured by two synchronous IP65 rated electric actuators, controlled by wired remote control.
The stretcher is equipped with 4 large wheels with a diameter of 125mm, two of which have brakes with centralized braking by foot control. The wheels ensure easy and precise movement of the stretcher in the presence or absence of a patient.
As an option, the stretcher can accommodate 1 pair of 25x10 medical rails 170cm long or a decontaminable comfort mattress 40mm thick with attachment to the trolley using Velcro straps.
Adjustable height from 550-800 mm.
Weight supported 150kg
Additional technical information:
Plate thickness: 15mm
Radiolucent surface: 1300x600mm
Tilt adjustment +/- 11?
Power supply: 230VAC - 50Hz - 6A
Power: 240 Watts
Elevation speed: 16mm per second (2 x 1000 Newton)
Net weight: 90kg
Standards: IPX6 - CE
- Material
- Aluminium
- Colors
- Blanc
- Length mm
- 1900
- Width mm
- 650
- Height mm
- 550-800
- Thickness mm
- 15
- Casters
- 4 Roues D125mm
- Maximum admissible weight kg
- 150
- Net weight kg
- 70,00
- Packing
- 200x70x70cm
- Gross weight kg
- 95,00
- Sterile
- Non stérile
- CE
- DM Classe 1
100807
