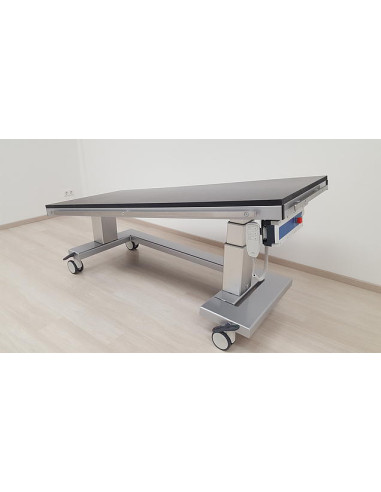

Radiotransparent battery trauma 2 section stretcher on C65 tilt adjustable

X-ray radiotransparent stretcher trolley intended for trauma examinations in emergency and imaging departments.

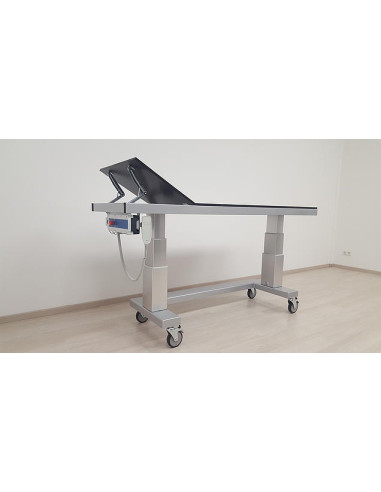

2 sections 500 and 1400mm

The AGA-AKKU-POWER-DUO-LIFT tables (with electrical height adjustment and incline/decline) have been specially designed for use in the field of radiology. One of their main
characteristics is the absence of a longitudinal bar on the front part of the chassis, which makes the positioning of an amplifier
semi-circular arc (C) brilliance easily possible.
The mobile traumatology trolley is equipped with a radiotransparent surface on a surface of 1200x600mm and thus allows the use of an operating room amplifier or a radiology mobile during emergency images or interventional procedures.

The height is ensured by two synchronous IP65 rated electric actuators, controlled by wired remote control.

The stretcher is equipped with 4 large wheels with a diameter of 125mm, two of which have brakes with centralized braking by foot control. The wheels ensure easy and precise movement of the stretcher in the presence or absence of a patient.

As an option, the stretcher can accommodate 1 pair of 25x10 medical rails 170cm long or a decontaminable comfort mattress 40mm thick with attachment to the trolley using Velcro straps.

Adjustable height from 460-860 mm.

Weight supported 150kg

Additional technical information:
Plate thickness: 15mm
Radiolucent surface: 1200x600mm
Incline/decline 11?
Power supply: 230VAC - 50Hz - 4A
Power: 160 Watts
Elevation speed: 16mm per second (2x2000 Newton)
Net weight: 90kg
Standards: IX6 - CE
