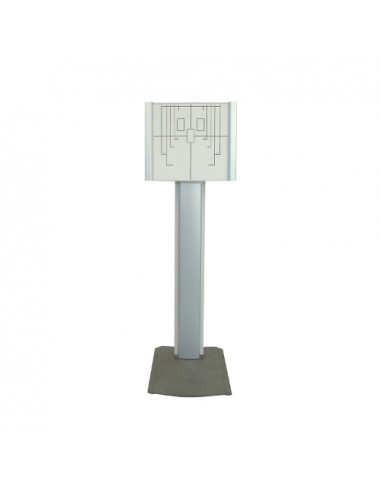

X-ray vertical chest bucky with base plate

Vertical potter with variable height compatible with X-ray cassettes, CR plates and DR detectors up to 36x43cm (14"x17") max thickness 16mm
The Chest Bucky allows examinations of general radiology in orthostatic position.
This device in its version has a manual movement of the detector assisted by a counterweight, beholden by a mechanical brake.
Bucky provided with and anti-scattering grid.

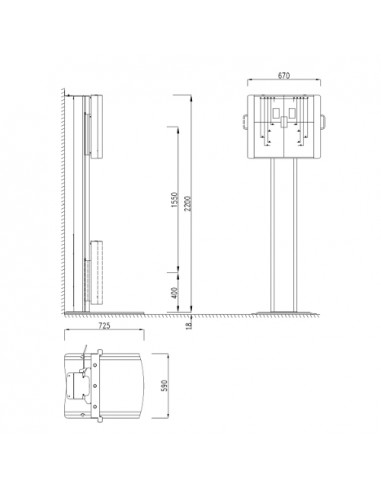

STAND TECHNICAL DATA
. Potter dimensions : H 2000mm x W 670mm
. Base plate dimensions : W 700mm x D 650mm
. Vertical movement : 1360mm
. Minimum distance from floor to imaging area : 400mm
. Maximum distance from floor to imaging area : 1760mm
. Counterweight vertical movement balance
. Mechanical vertical movement brake
. No power supply needed
. Device weight 125 Kg

GRID AND BUCKY TECHNICAL DATA
. Manual Bucky
. compatible with X-ray cassettes, CR plates and DR detectors up to 36x43cm (14"x17") max thickness 16mm
. Anti-scattering grid 40 lines per cm. Rate 10:1. Focal 150cm.
. Grille mont sur lames vibrantes
. Patient skin / detector distance : 40mm
