Hyperion operating table multiple settings Lg 2335mm Width 570mm Max Load 500kg - Mini Height 585mm
Hyperion operating table Lg 2335mm Width 570mm
The HYPERION operating table can be controlled in several ways, which can reduce the time of the table adjustment and increase the efficiency of the operations performed.
This HYPERION operating table can be set in several positions necessary during the operation.
The combination of the minimum height (585 mm) and the maximum load capacity (500 kg) allows to operate safely the patients.
The operating table top, made with high quality carbon fiber, is radiolucent which allows to take X-ray pictures.
Product Benefits:
? The Hyperion's system does not consume too much energy and also allows for smooth settings
? The double system of the height adjustment allows to low the table to a 585mm height, making it easier to position the patient on the HYPERION table top.
? With excellent product parameters and a wide range of position settings, almost all types of operations can be performed.
Wide range of positions :

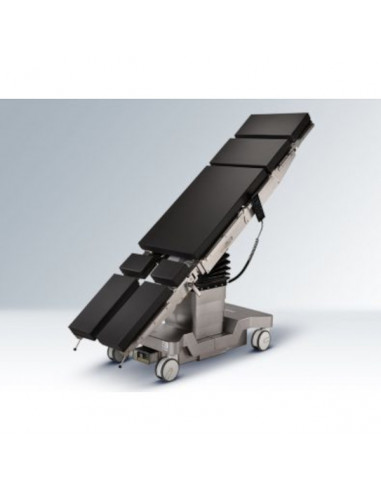

? Reverse-Trendelenburg position : Used to prevent patient?s choking and complications during head and neck surgery
? Trendelenburg position : Used to decrease the risk of shock in patient, provides the surgeon with easy access to pelvis
? Lateral tilt : gives surgeons better access to lateral parts of the body and some internal organs

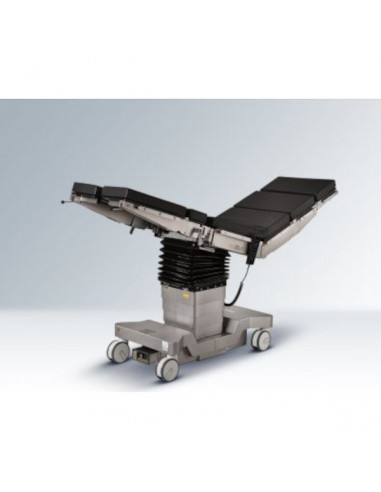

? Flex : Facilitates performance of procedures requiring better access to the back, kidneys, bladder or abdominal organs
? Reflex : Facilitates performance of procedures requiring better access to the back, kidneys, bladder or abdominal organs

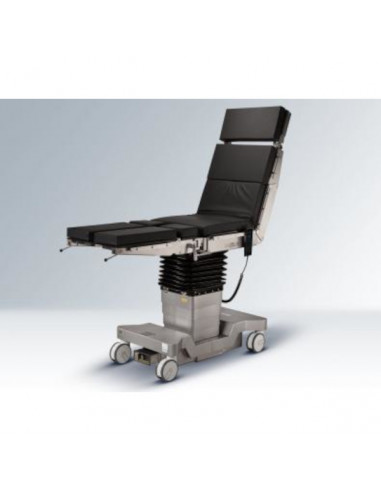

? Chair position : Facilitates eye surgery, neurosurgery and shoulder surgery
Technical features :
? Length = 2335mm
? Width = 570mm
? Minimum height = 585mm
? Maximum height = 1050mm
? Back rest segment inclination = -40? - +80?
? Thigh rest segment inclination = -90? - +35?
? Trendelenburg position = 40?
? Reverse-Trendelenburg position = 40?
? Maximum load = 500kg
Product Benefits :
? Luer lock connector on the handle for secure syringe attachement
? An adjustable, removable needle stop safely controls depth of penetration
? Can be used via the iliac pathway by removing the adjustable stop
Device Composition :
? Stylet (Stainless steel)
? Cannula (Stainless steel)
? Stylet hub (ABS plastic)
? Cannula hub (Polycarbonate)
? Sheath (LDPE)
Additional Informations:
? Medical device sterilized with ethylene oxide
? Single use medical device
? No latex
? No phthalates (DHP)
Precaution :
? Check the integrity of the sterility protector before use.
? Use before the expiration date.
? Store in a cool and dry place.
? Do not re-sterilize: single use.
? Comply with the instructions for use.
Packaging:
? Box of 10 units
The needles are delivered with a non-stick cannula guide to facilitate the alignment of the cannula in the needle tip.
This protects the tip to eliminate the risks of accidental injury.
This product is CE certified.
The HYPERION operating table can be controlled in several ways, which can reduce the time of the table adjustment and increase the efficiency of the operations performed.
This HYPERION operating table can be set in several positions necessary during the operation.
The combination of the minimum height (585 mm) and the maximum load capacity (500 kg) allows to operate safely the patients.
The operating table top, made with high quality carbon fiber, is radiolucent which allows to take X-ray pictures.
Product Benefits:
? The Hyperion's system does not consume too much energy and also allows for smooth settings
? The double system of the height adjustment allows to low the table to a 585mm height, making it easier to position the patient on the HYPERION table top.
? With excellent product parameters and a wide range of position settings, almost all types of operations can be performed.
Wide range of positions :
? Reverse-Trendelenburg position : Used to prevent patient?s choking and complications during head and neck surgery
? Trendelenburg position : Used to decrease the risk of shock in patient, provides the surgeon with easy access to pelvis
? Lateral tilt : gives surgeons better access to lateral parts of the body and some internal organs
? Flex : Facilitates performance of procedures requiring better access to the back, kidneys, bladder or abdominal organs
? Reflex : Facilitates performance of procedures requiring better access to the back, kidneys, bladder or abdominal organs
? Chair position : Facilitates eye surgery, neurosurgery and shoulder surgery
Technical features :
? Length = 2335mm
? Width = 570mm
? Minimum height = 585mm
? Maximum height = 1050mm
? Back rest segment inclination = -40? - +80?
? Thigh rest segment inclination = -90? - +35?
? Trendelenburg position = 40?
? Reverse-Trendelenburg position = 40?
? Maximum load = 500kg
Product Benefits :
? Luer lock connector on the handle for secure syringe attachement
? An adjustable, removable needle stop safely controls depth of penetration
? Can be used via the iliac pathway by removing the adjustable stop
Device Composition :
? Stylet (Stainless steel)
? Cannula (Stainless steel)
? Stylet hub (ABS plastic)
? Cannula hub (Polycarbonate)
? Sheath (LDPE)
Additional Informations:
? Medical device sterilized with ethylene oxide
? Single use medical device
? No latex
? No phthalates (DHP)
Precaution :
? Check the integrity of the sterility protector before use.
? Use before the expiration date.
? Store in a cool and dry place.
? Do not re-sterilize: single use.
? Comply with the instructions for use.
Packaging:
? Box of 10 units
The needles are delivered with a non-stick cannula guide to facilitate the alignment of the cannula in the needle tip.
This protects the tip to eliminate the risks of accidental injury.
This product is CE certified.
- Material
- Fibre de carbone
- Length mm
- 2335
- Width mm
- 570
- Height mm
- 585/1050
- Casters
- 4 Roues D150mm
- Maximum admissible weight kg
- 500
- Net weight kg
- 296,00
- Packing
- 1 caisse bois 158 x 86 x 112 cm
- Gross weight kg
- 370,00
- Sterile
- Non stérile
- CE
- DM Classe 1
