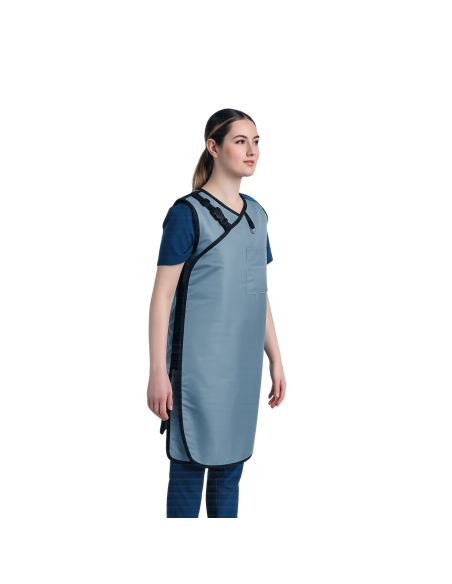

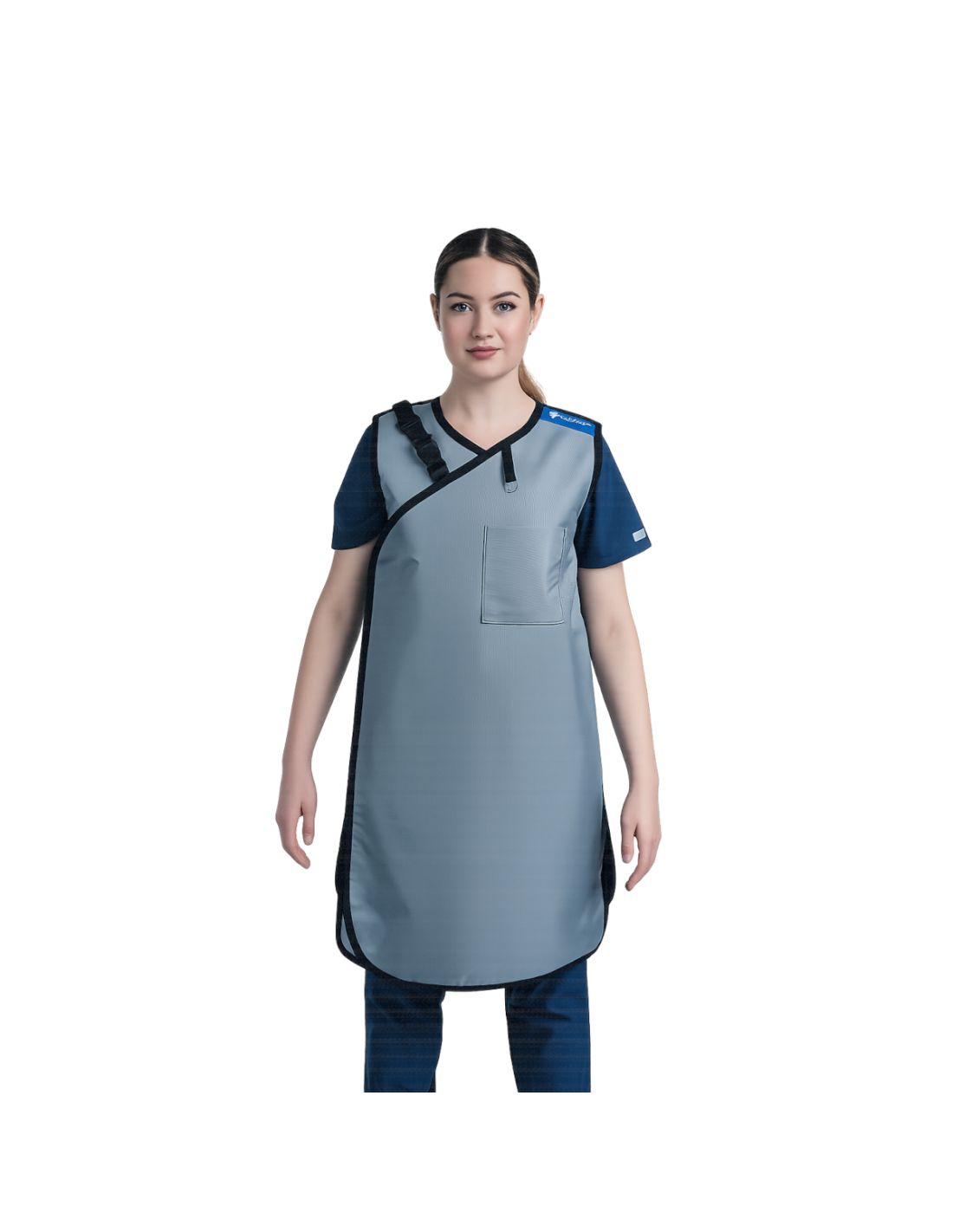

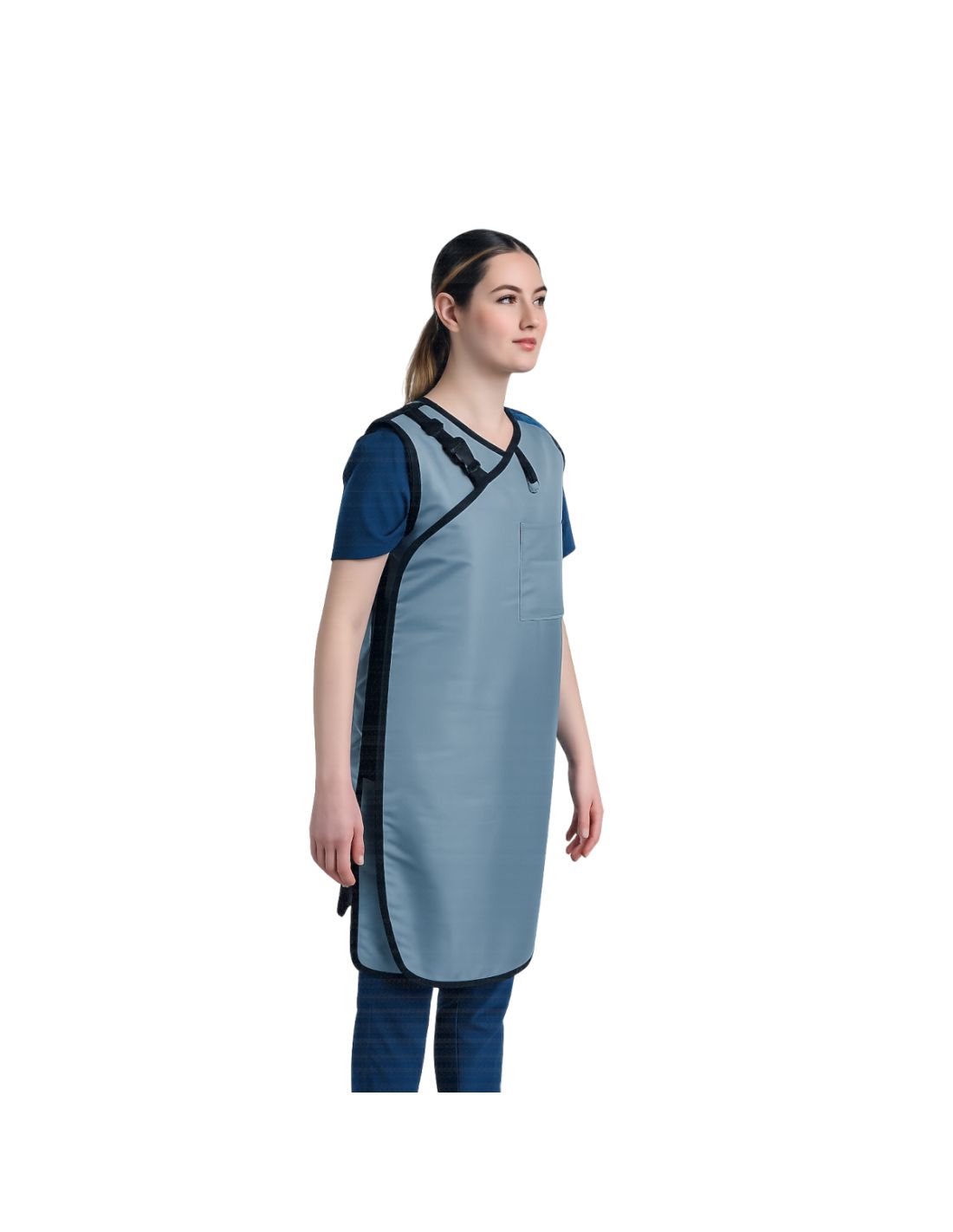

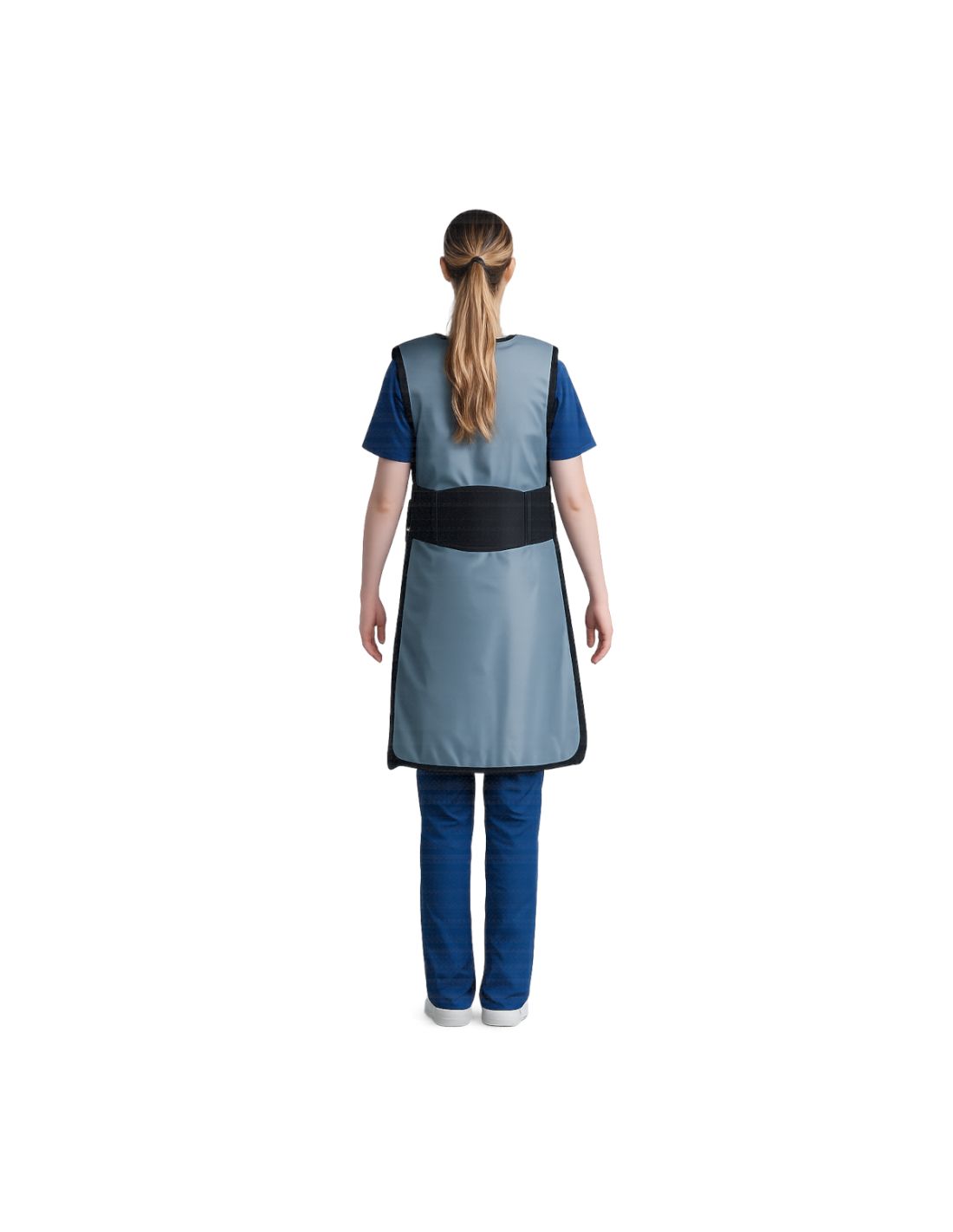

BURLINGTON F112 STRATA LEADFREE Radiation Protection Coat Apron

Lightweight Protection and Maximum Comfort for Extended Procedures

The BURLINGTON F112 STRATA LEADFREE radiation protection coat apron has been designed to provide effective protection against X-rays while significantly reducing the weight carried by the user. Thanks to its innovative lead-free multilayer technology and full-overlap design, it ensures complete coverage of both the front and back of the body while maintaining excellent comfort during extended procedures.

Its ergonomic design promotes balanced weight distribution between the shoulders and hips, helping to reduce operator fatigue. Equipped with a wide 15 cm adjustable elastic belt, adjustable lumbar support, and padded shoulders, the F112 STRATA LEADFREE is particularly suited for healthcare professionals who are routinely exposed to ionising radiation.

STRATA LEADFREE Technology: Lightweight Protection up to 120 kV

BURLINGTON STRATA LEADFREE material is based on an advanced layered protection technology that delivers excellent lead equivalency while significantly reducing the overall weight of the apron.

- Available lead equivalencies: 0.35/0.25 mm Pb or 0.50/0.25 mm Pb
- Tested at 50, 70, 90 and 110 kV in accordance with IEC 61331-1:2014
- Lead-free multilayer technology for significant weight reduction
- Lead equivalency determined using the inverse broad beam geometry method in accordance with IEC 61331-1:2014
- Suitable for applications using X-ray energies below 120 kV

Recommended Applications

The F112 STRATA LEADFREE coat apron is particularly suitable for professionals working in:

- Interventional Radiology
- Interventional Cardiology
- CT Imaging
- General Radiography
- Dental Imaging

It is recommended for procedures lasting more than 30 minutes that require effective radiation protection and maximum comfort.

Usage Limitations

Lead-free or lightweight protective garments should not be used in the following situations:

- When X-ray generator voltages are between 120 kV and 150 kV
- When using X-ray generators operating above 150 kV
- In Nuclear Medicine, regardless of the radionuclide used

Technical Features

- Full-overlap design for enhanced coverage
- Full-height front Velcro closure
- 15 cm adjustable elastic belt
- Optimised weight distribution between shoulders and hips
- Adjustable lumbar support
- Thick padded shoulders for enhanced comfort
- Standard chest pocket
- Quick and easy donning and removal

Compliance and Certification

- Compliant with IEC 61331-3:2014
- HC Category (Heavy Closed Use)
- CE Certified 89/686/EEC
- Personal Protective Equipment (PPE) Category III
- Tested and approved in accordance with NF EN 61331-3:2014

BURLINGTON STRATA LEADFREE Material

STRATA LEADFREE material combines lightweight construction, effective radiation protection, and environmental responsibility.

- 2.81 kg/m2 at 0.25 mm Pb equivalency
- 3.95 kg/m2 at 0.35 mm Pb equivalency
- 5.54 kg/m2 at 0.50 mm Pb equivalency
- 98% recyclable material
- Manufactured using a hot reformulation process

30 Colours Available

- Antibacterial outer coverings
- 4 patterned PVC colours
- 12 Polyurethane (PU) colours, plain or patterned
- 14 Nylon colours, plain or patterned
- Durable and easy-to-clean surfaces

Warranty

5 year manufacturer warranty

Key Benefits of the BURLINGTON F112 STRATA LEADFREE Coat Apron

- Lightweight lead-free technology
- Excellent protection for applications up to 120 kV
- Full-overlap design for maximum coverage
- Weight distribution between shoulders and hips
- Adjustable lumbar support for long-lasting comfort
- Ideal for procedures lasting more than 30 minutes
- Compliant with IEC 61331-1 and IEC 61331-3 standards
- 98% recyclable material
- 5 year warranty
