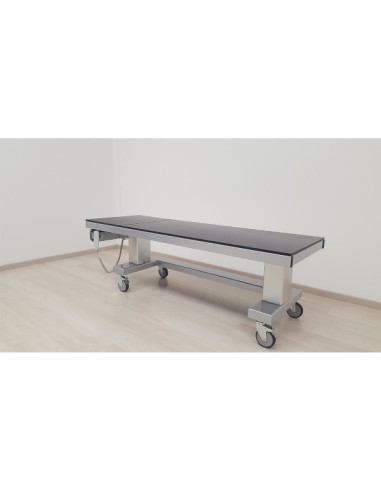

Battery power height adjustable traumatology stretcher 2 sections C55 Height 460 to 860mm
C55 2 sections battery-powered radiotransparent trauma stretcher
X-ray radiotransparent stretcher trolley intended for trauma examinations in emergency and imaging departments.
2 sections of 500 and 1400mm.
The AGA-AKKU POWER-LIFT tables (with electrical height adjustment) have been specially designed for use in the field of radiology. One of their main
characteristics is the absence of a longitudinal bar on the front part of the chassis, which makes the positioning of an amplifier
semi-circular arc (C) brilliance easily possible.
This rechargeable battery model ensures greater flexibility of use.
The mobile traumatology trolley is equipped with a radiotransparent surface on a surface of 1200x600mm and thus allows the use of an operating room amplifier or a radiology mobile during emergency images or interventional procedures.
The height is ensured by two synchronous IP65 rated electric actuators, controlled by wired remote control.
The stretcher is equipped with 4 large wheels with a diameter of 125mm, two of which have brakes with centralized braking by foot control. The wheels ensure easy and precise movement of the stretcher in the presence or absence of a patient.
As an option, the stretcher can accommodate 1 pair of 25x10 medical rails 170cm long or a decontaminable comfort mattress 40mm thick with attachment to the trolley using Velcro straps.
Adjustable height from 460-860 mm.
Weight supported 150kg
Additional technical information:
Plate thickness: 15mm
Radiolucent surface: 1200x600mm
Power supply: 230VAC - 50Hz - 4A (External charger)
Power: 160 Watts
Elevation speed: 16mm per second (2x2000 Newton)
Net weight: 90kg
Standards: IX6 - CE
X-ray radiotransparent stretcher trolley intended for trauma examinations in emergency and imaging departments.
2 sections of 500 and 1400mm.
The AGA-AKKU POWER-LIFT tables (with electrical height adjustment) have been specially designed for use in the field of radiology. One of their main
characteristics is the absence of a longitudinal bar on the front part of the chassis, which makes the positioning of an amplifier
semi-circular arc (C) brilliance easily possible.
This rechargeable battery model ensures greater flexibility of use.
The mobile traumatology trolley is equipped with a radiotransparent surface on a surface of 1200x600mm and thus allows the use of an operating room amplifier or a radiology mobile during emergency images or interventional procedures.
The height is ensured by two synchronous IP65 rated electric actuators, controlled by wired remote control.
The stretcher is equipped with 4 large wheels with a diameter of 125mm, two of which have brakes with centralized braking by foot control. The wheels ensure easy and precise movement of the stretcher in the presence or absence of a patient.
As an option, the stretcher can accommodate 1 pair of 25x10 medical rails 170cm long or a decontaminable comfort mattress 40mm thick with attachment to the trolley using Velcro straps.
Adjustable height from 460-860 mm.
Weight supported 150kg
Additional technical information:
Plate thickness: 15mm
Radiolucent surface: 1200x600mm
Power supply: 230VAC - 50Hz - 4A (External charger)
Power: 160 Watts
Elevation speed: 16mm per second (2x2000 Newton)
Net weight: 90kg
Standards: IX6 - CE
- Material
- Aluminium
- Colors
- Blanc
- Length mm
- 1900
- Width mm
- 650
- Height mm
- 460-860
- Thickness mm
- 15
- Casters
- 4 Roues D125mm
- Maximum admissible weight kg
- 150
- Net weight kg
- 70,00
- Packing
- 200x70x70cm
- Gross weight kg
- 95,00
- Sterile
- Non stérile
- CE
- DM Classe 1
