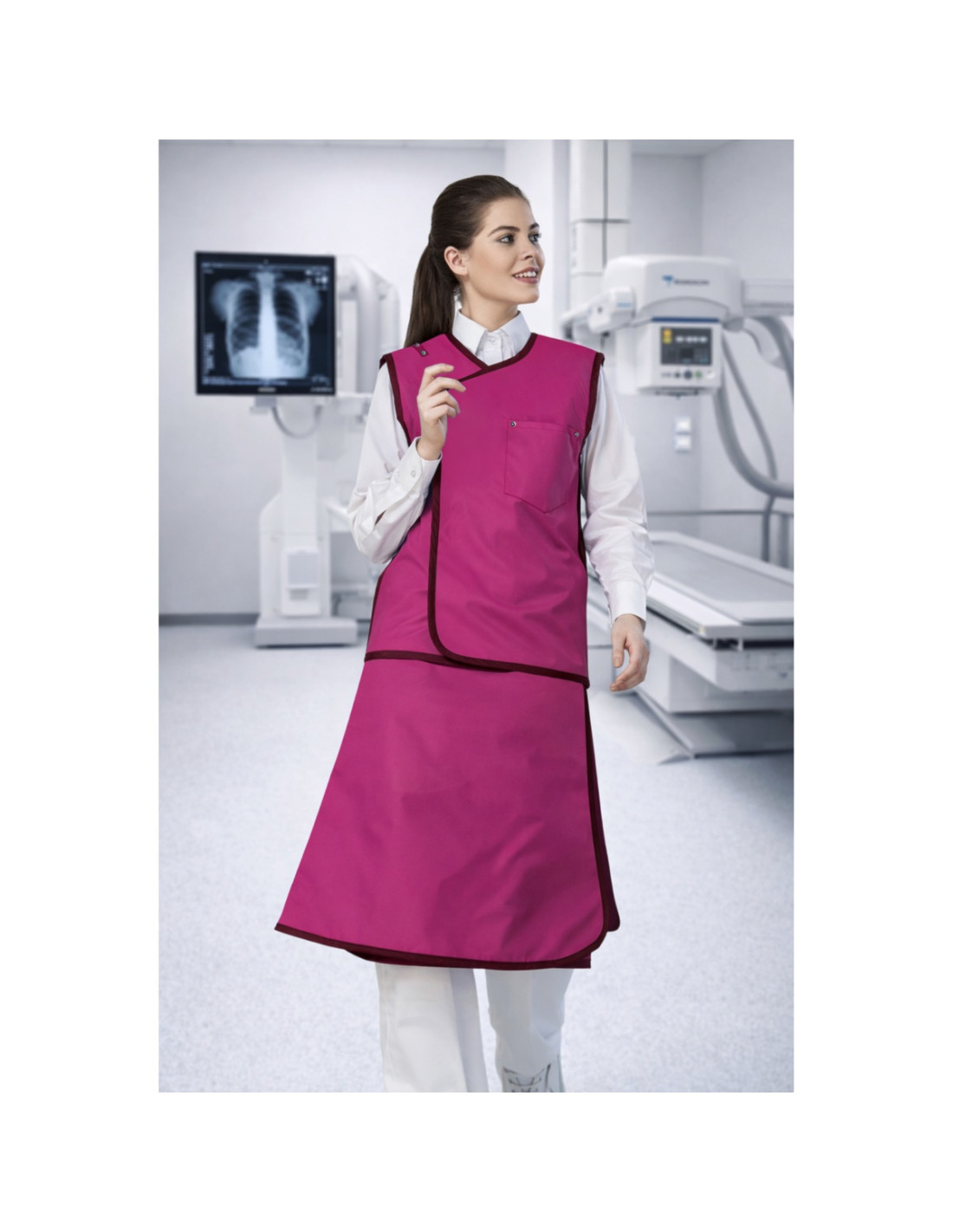

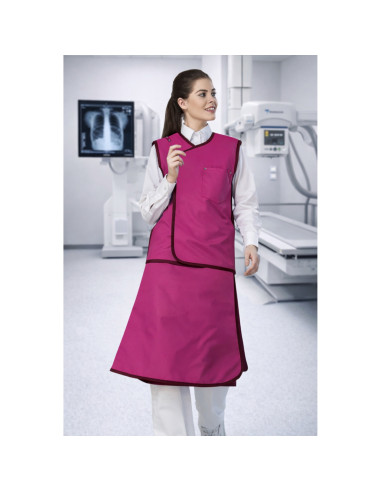

Uniray OPTIX Lead Jacket for Radiology
Ergonomic anti-X protection for healthcare professionals

A radiation protection jacket designed for prolonged procedures

The Uniray OPTIX lead jacket is a personal protective equipment (PPE) designed for healthcare professionals exposed to ionizing radiation during extended procedures.

Its design with partial front overlap helps effectively reduce exposure to scattered radiation while maintaining excellent freedom of movement.

This model is particularly suited for demanding environments:
- interventional radiology
- operating rooms
- interventional cardiology

High-performance anti-X protection

Manufactured from lead material, the OPTIX jacket ensures high attenuation of ionizing radiation across a wide energy range:
- protection from 50 to 150 kV
- suitable for scattered radiation environments
- usable in interventional radiology and nuclear medicine

Available lead equivalences
- 0.25 / 0.25 mm Pb
- 0.35 / 0.25 mm Pb: standard intensive use
- 0.50 / 0.25 mm Pb: enhanced protection

Attenuation performance
- up to 99.83% at 60 kV (0.50 mm Pb)
- over 93% at 150 kV (0.35 mm Pb)
- high efficiency across the full energy range

Regulatory compliance in radiation protection

The OPTIX jacket meets the most stringent European requirements:
- PPE Category III
- compliant with EU Regulation 2016/425
- CE marking 0598
- conforms to NF EN 61331-3:2014
- tested according to IEC 61331-1:2014

These certifications ensure a high level of safety for exposed professionals.

Optimized ergonomics for prolonged wear

The jacket is designed to improve user comfort:
- optimized weight distribution across the shoulders
- thick shoulder padding to reduce pressure points
- unisex cut suitable for different body types
- design promoting mobility and ease of movement

These features help reduce fatigue during long procedures.

Precise fit and size adaptability

Available in 6 sizes and 2 lengths, the OPTIX jacket allows precise adjustment to ensure consistent protection.

The sizing guide helps match body measurements (chest circumference and height) for optimal coverage.

Coatings adapted to healthcare environments

Two professional finishing options are available:

Nylon
- high wear resistance
- antibacterial treatment
- suitable for intensive use

Polyurethane
- soft and comfortable surface
- easy to clean and disinfect
- stain-resistant

A wide range of colors is available to meet facility requirements.

Clinical use

The OPTIX lead jacket is recommended for:

- fluoroscopy-guided procedures
- long procedures in interventional radiology
- environments requiring effective radiation protection with mobility

Customization options
- internal dosimeter pocket
- chest pocket
- thyroid shield attachment
- custom embroidery

Technical specifications
Type: lead radiation protection jacket
Material: lead

Available lead equivalences:
- 0.25/ 0.25 mm Pb
- 0.35 / 0.25 mm Pb
- 0.50 / 0.25 mm Pb

Material weight (indicative):
- 3.4 kg/m? (0.25 mm)
- 4.8 kg/m? (0.35 mm)
- 6.8 kg/m? (0.50 mm)

Operating range: 50 to 150 kV
Sizes: XS to 3XL
Lengths: 2 available
Coatings: nylon or polyurethane
Included accessory: hanger
Warranty: 2 years
Product positioning

The Uniray OPTIX lead jacket is a high-performance radiation protection solution combining effective shielding, ergonomic design, and regulatory compliance, ideal for healthcare professionals working in demanding medical environments.
