BURLINGTON PVEST STRATA LEADFREE Radiation Protection Vest

Lightweight Protection and Enhanced Lumbar Support for Extended Procedures

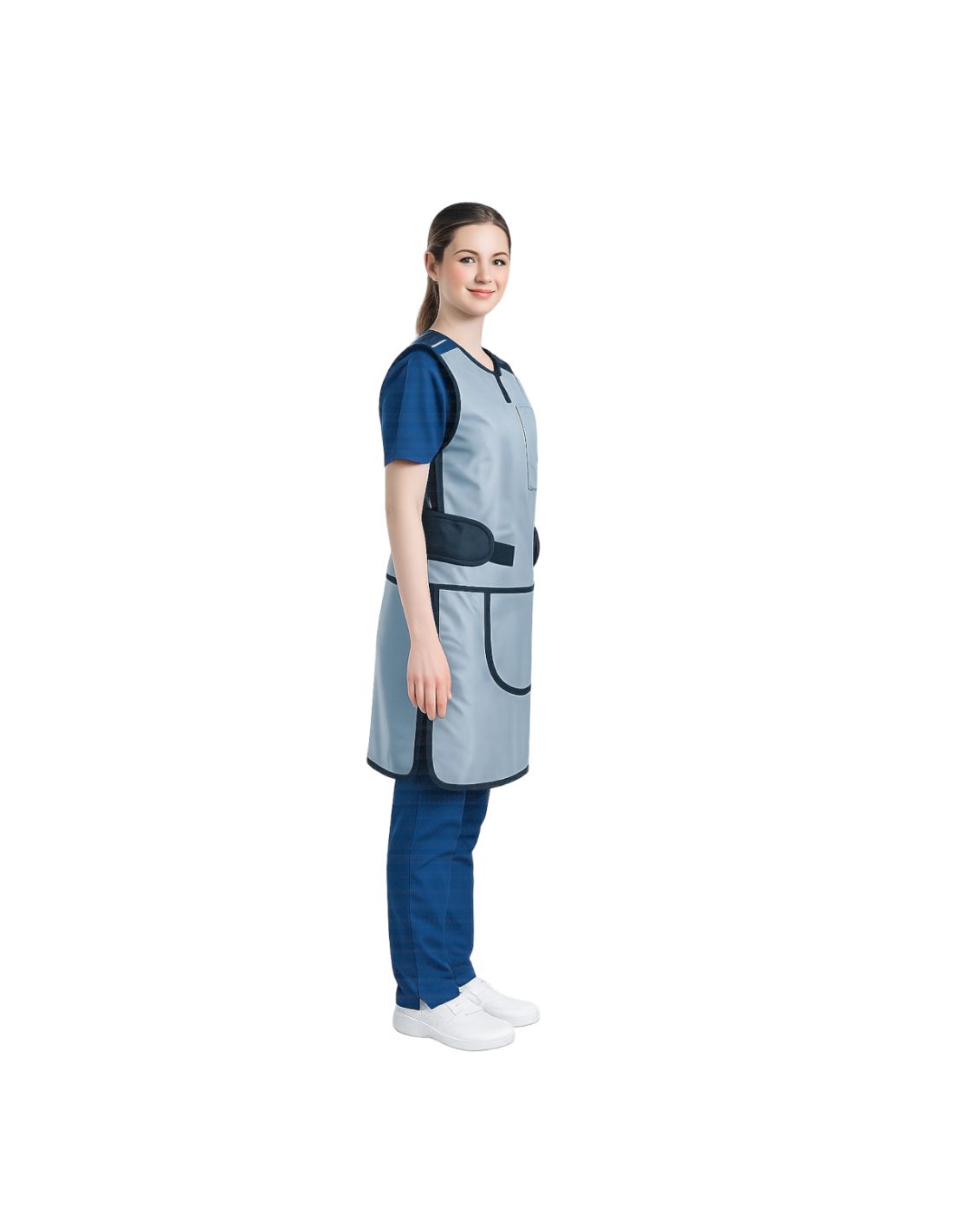

The BURLINGTON PVEST STRATA LEADFREE radiation protection vest has been designed to provide effective protection against X-rays while significantly reducing the weight carried by the user. Thanks to its innovative lead-free multilayer technology and full-overlap ergonomic design, it is an ideal solution for healthcare professionals performing long-duration interventional procedures.

Its tailored fit closely follows the body's shape, transferring a significant portion of the weight to the hips. Combined with enhanced lumbar support and an elastic back panel, this design considerably reduces strain on the shoulders and back, improving comfort during extended procedures.

STRATA LEADFREE Technology: Lightweight Protection up to 120 kV

BURLINGTON STRATA LEADFREE material is based on an advanced layered protection technology that provides excellent lead equivalency while significantly reducing the overall weight of the protective garment.

- Available lead equivalencies: 0.35/0.25 mm Pb or 0.50/0.25 mm Pb
- Tested at 50, 70, 90 and 110 kV in accordance with IEC 61331-1:2014
- Lead-free multilayer technology for significant weight reduction
- Lead equivalency determined using the inverse broad beam geometry method in accordance with IEC 61331-1:2014
- Suitable for applications using X-ray energies below 120 kV

Recommended Applications

The PVEST STRATA LEADFREE vest is particularly suitable for professionals working in:

- Interventional Radiology
- Interventional Cardiology
- CT Imaging
- General Radiography
- Dental Imaging

It is especially recommended for procedures lasting more than 30 minutes that require effective radiation protection and maximum reduction of musculoskeletal strain.

Usage Limitations

Lead-free or lightweight protective garments should not be used in the following situations:

- When X-ray generator voltages are between 120 kV and 150 kV
- When using X-ray generators operating above 150 kV
- In Nuclear Medicine, regardless of the radionuclide used

Technical Features

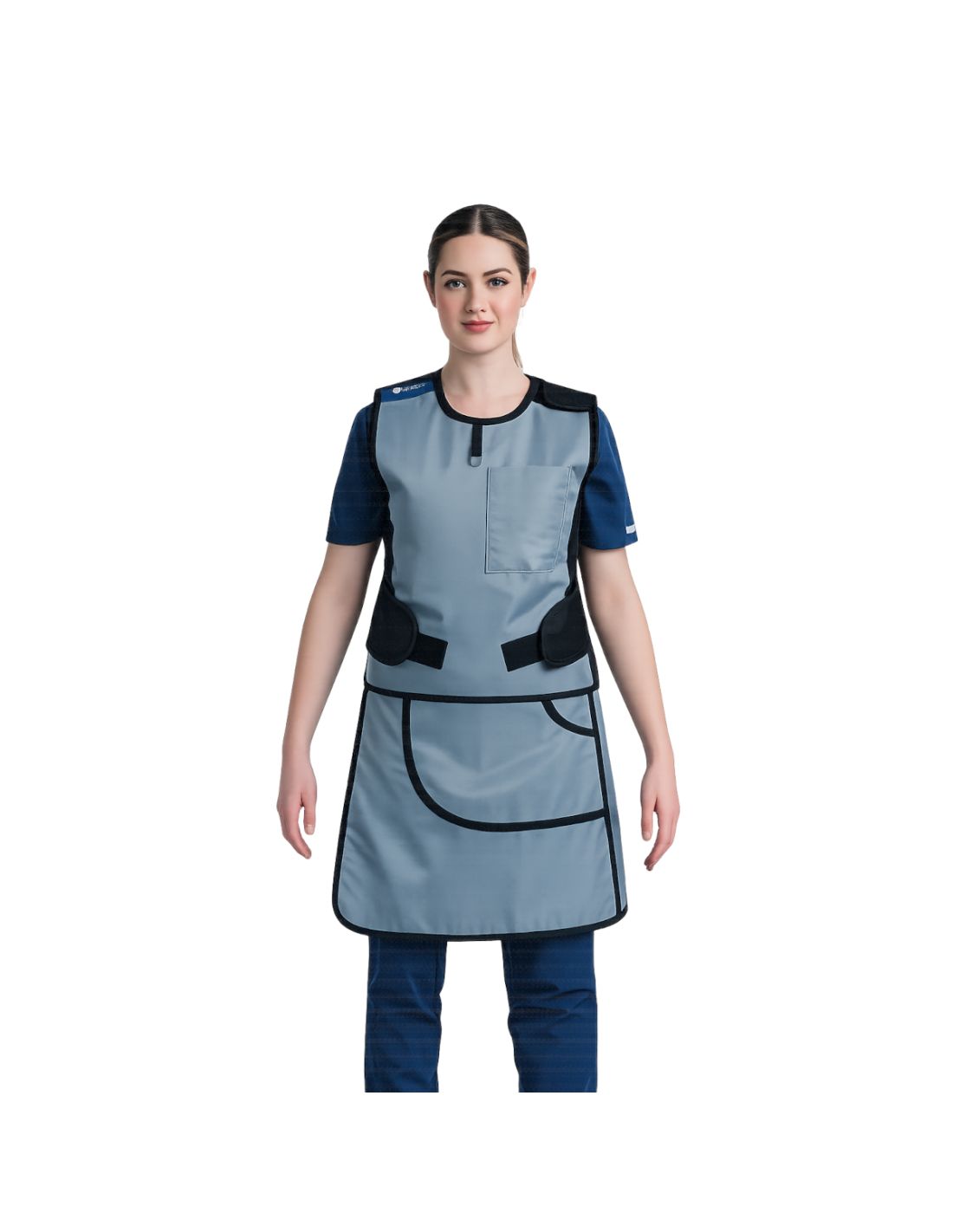

- Full-overlap design for complete front and back protection
- Front Velcro closure
- Enhanced lumbar support

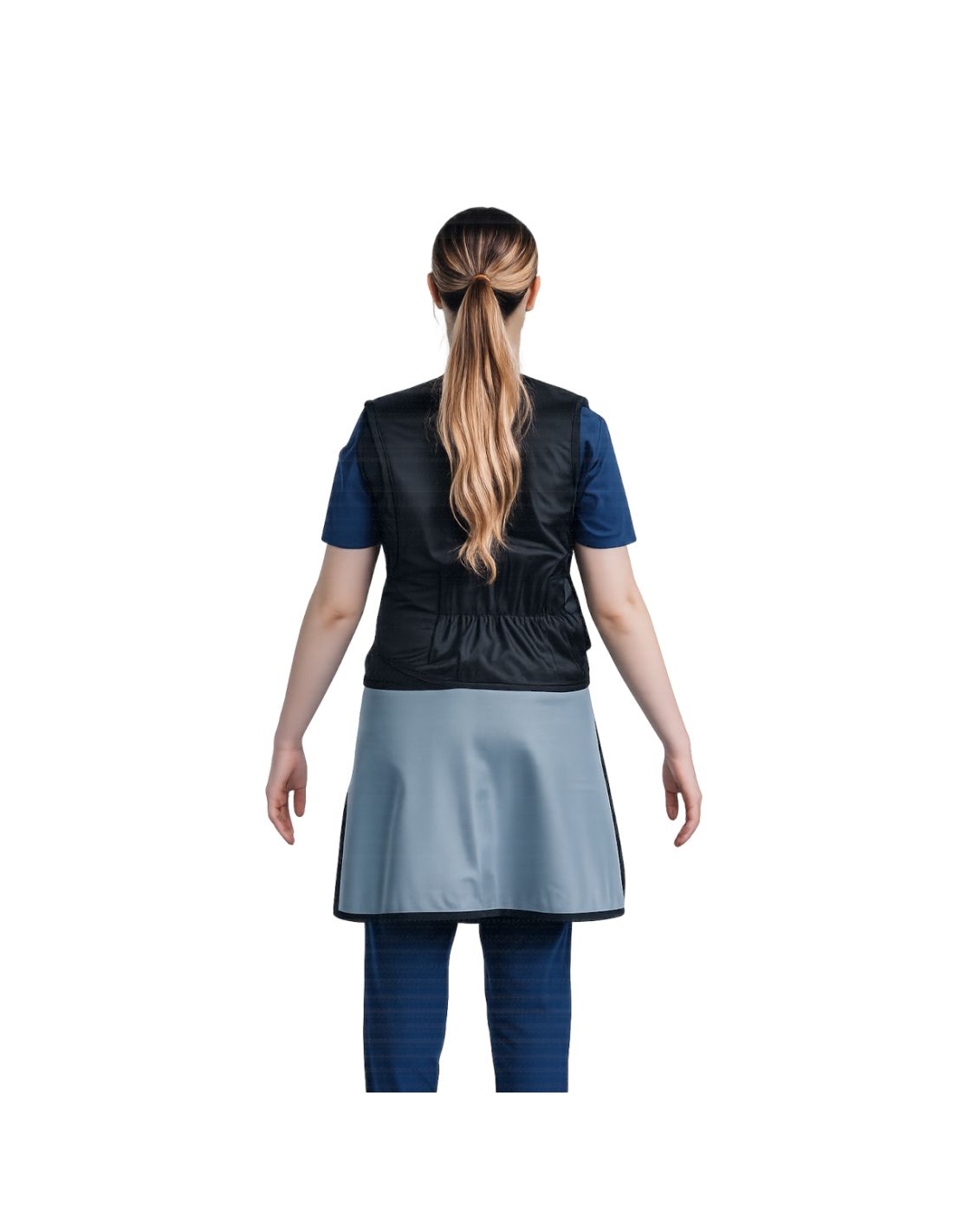

- Elastic back panel to improve weight transfer to the hips
- Optimised weight distribution between shoulders and waist
- Thick padded shoulders for enhanced comfort
- Standard chest pocket
- Quick and easy donning and removal

Compliance and Certification

- Compliant with IEC 61331-3:2014
- HC Category (Heavy Closed Use)
- CE Certified 89/686/EEC
- Personal Protective Equipment (PPE) Category III
- Tested and approved in accordance with NF EN 61331-3:2014

BURLINGTON STRATA LEADFREE Material

STRATA LEADFREE material combines lightweight construction, effective radiation protection, and environmental responsibility.

- 2.81 kg/m2 at 0.25 mm Pb equivalency
- 3.95 kg/m2 at 0.35 mm Pb equivalency
- 5.54 kg/m2 at 0.50 mm Pb equivalency
- 98% recyclable material
- Manufactured using a hot reformulation process

30 Colours Available

- Antibacterial outer coverings
- 4 patterned PVC colours
- 12 Polyurethane (PU) colours, plain or patterned
- 14 Nylon colours, plain or patterned
- Durable and easy-to-clean surfaces

Key Benefits of the BURLINGTON PVEST STRATA LEADFREE Vest

- Lightweight lead-free technology
- Enhanced lumbar support to reduce back strain
- Optimised weight distribution between hips and shoulders
- Excellent protection for applications up to 120 kV
- Exceptional comfort during extended procedures
- Full-overlap design for maximum coverage
- Compliant with IEC 61331-1 and IEC 61331-3 standards
- 98% recyclable material
- 5 year warranty
