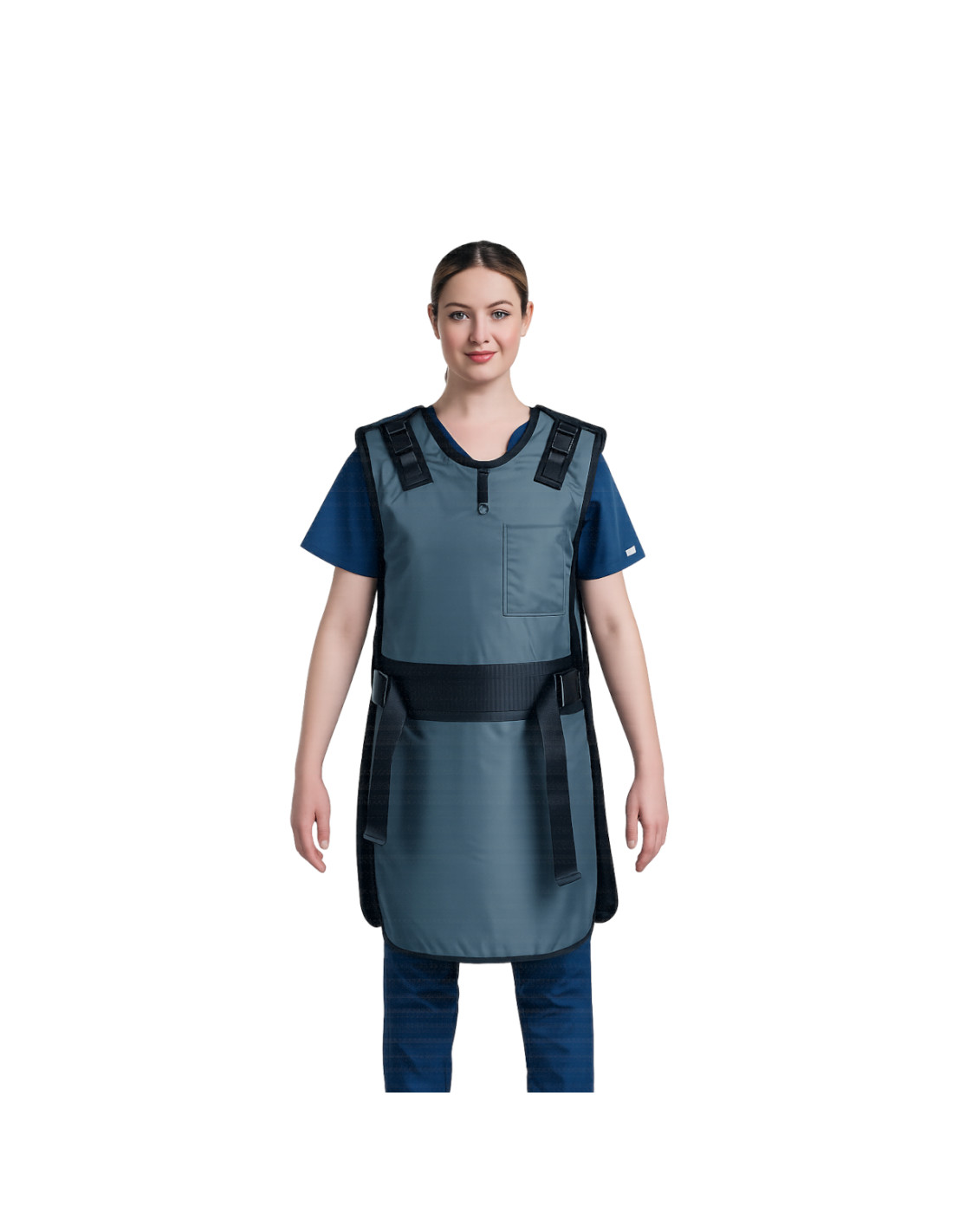

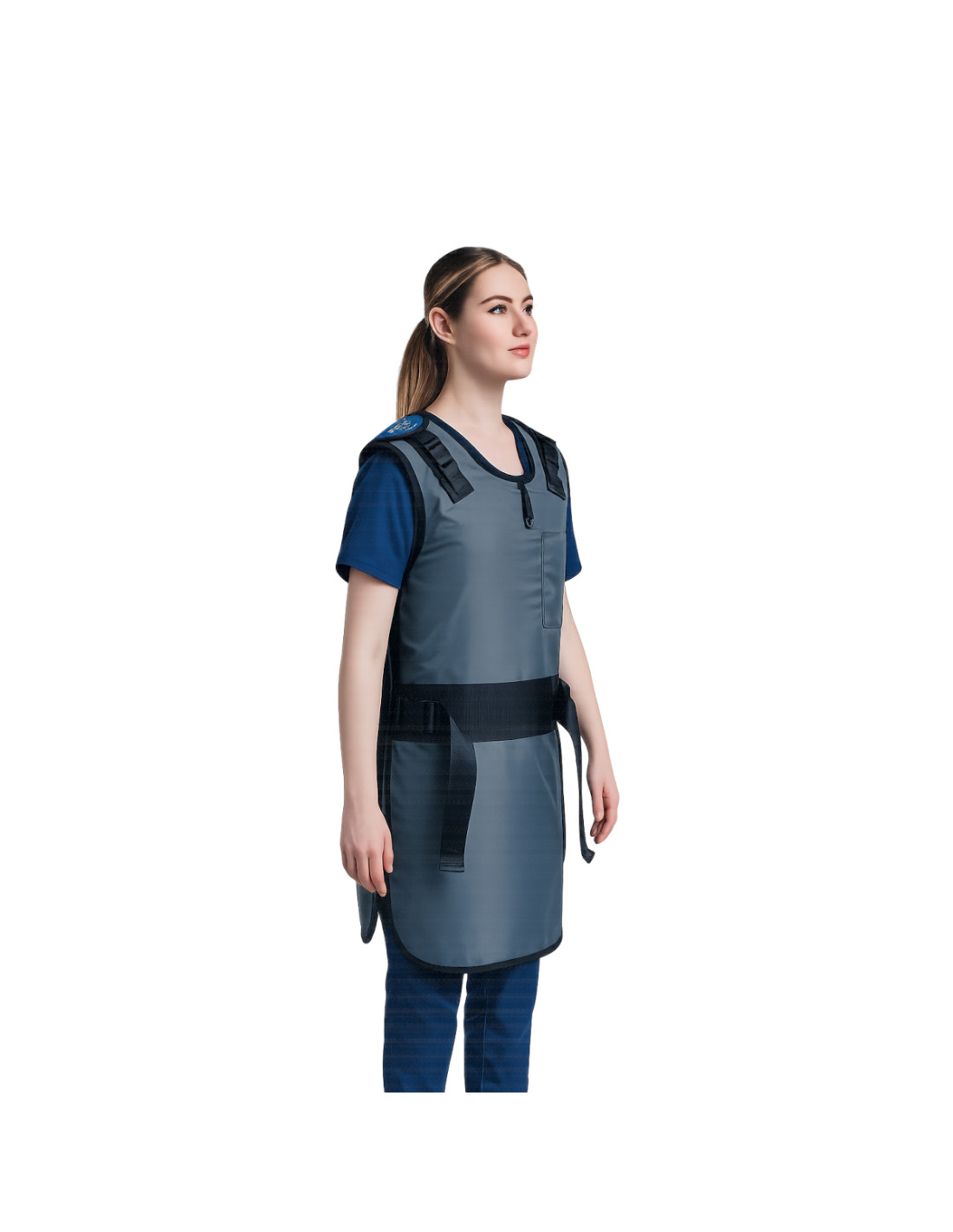

BURLINGTON W114 EVAL Radiation Protection Coat Apron

High-Performance Lead Protection Specifically Designed for Operating Rooms

The BURLINGTON W114 EVAL radiation protection coat apron has been developed to meet the needs of healthcare professionals exposed to ionising radiation during interventional and surgical procedures. Thanks to its ergonomic design and 100% lead-based protective material, it delivers an excellent weight-to-protection ratio while ensuring optimal comfort during short to medium-duration procedures.

Unique on the market, the W114 EVAL has been specifically designed to meet the strict hygiene requirements of operating rooms. Its 100% buckle fastening system, with no Velcro components, helps reduce contamination retention areas and facilitates cleaning and disinfection protocols.

EVAL Material: Certified Protection up to 150 kV

Manufactured from BURLINGTON EVAL lead-based protective material, the W114 provides consistent and reliable protection across the full range of imaging energies used in medical environments.

- Available lead equivalencies: 0.35/0.25 mm Pb or 0.50/0.25 mm Pb
- Tested and approved from 50 kV to 150 kV in accordance with IEC 61331-1:2014
- Suitable for procedures using X-ray energies above 125 kV
- Lead equivalency determined using the inverse broad beam geometry method in accordance with IEC 61331-1:2014
- 100% lead-based protective material for optimal radiation attenuation

Recommended Applications

The W114 EVAL coat apron is particularly suitable for professionals working in:

- Operating Rooms
- Interventional Radiology
- Interventional Cardiology
- CT Imaging
- General Radiography
- Mammography
- Dental Imaging
- Computed Tomography
- Nuclear Medicine

Technical Features

- Full-height side closure with buckles
- Velcro-free fastening system for enhanced hygiene
- Shoulder buckles for precise adjustment
- 15 cm adjustable elastic belt
- Optimised weight distribution between shoulders and hips
- Thick padded shoulders for enhanced comfort
- Quick and secure fitting

Compliance and Certification

- Compliant with IEC 61331-3:2014
- HC Category (Heavy Closed Use)
- CE Certified 89/686/EEC
- Personal Protective Equipment (PPE) Category III
- Tested and approved in accordance with NF EN 61331-3:2014

BURLINGTON EVAL Material

EVAL material provides a high level of radiation protection while ensuring excellent durability.

- 3.62 kg/m2 at 0.25 mm Pb equivalency
- 4.9 kg/m2 at 0.35 mm Pb equivalency
- 7.11 kg/m2 at 0.50 mm Pb equivalency
- 98% recyclable material
- Manufactured using a hot reformulation process

30 Colours Available

- Antibacterial outer coverings
- 4 patterned PVC colours
- 12 Polyurethane (PU) colours, plain or patterned
- 14 Nylon colours, plain or patterned
- Durable and easy-to-clean surfaces

Key Benefits of the BURLINGTON W114 EVAL Coat Apron

- Specifically designed for operating room environments
- 100% buckle fastening system with no Velcro
- Certified lead protection up to 150 kV
- 100% lead-based material for consistent protection
- Weight distribution between shoulders and hips
- Optimal comfort during interventional procedures
- Compliant with IEC 61331-1 and IEC 61331-3 standards
- 98% recyclable material
- 5 year warranty
