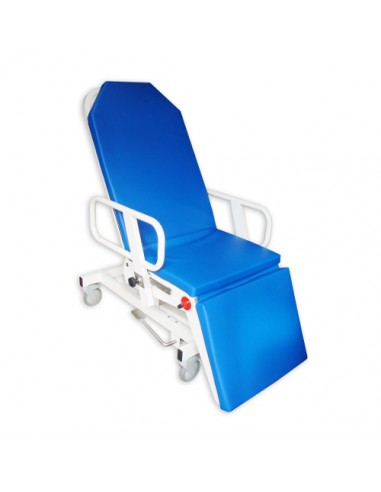

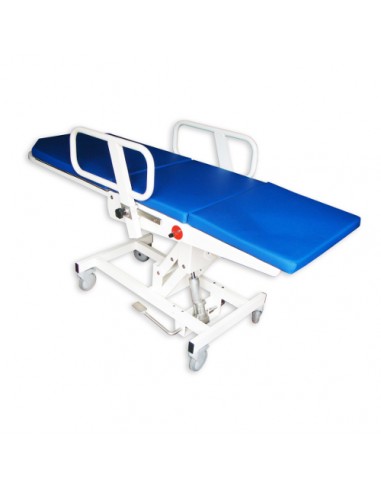

Non magnetic stretcher triplan for mr rooms up to 3 tesla
3 Tesla compatible non-magnetic stretcher designed to meet ambulatory needs in MRI services.
The non-magnetic TRIPLAN stretcher has been specially developed to rapidly and with minimal effort to convert the device from stretcher to chair.
To ensure patient comfort, the TRIPLAN stretcher is equipped with a 50mm thick foam mattress covered with a removable protective cover and two removable safety barriers.
PRODUCT ADVANTAGES:
- Allows patients to be transported in a sitting or lying position.
- Can be used at any time of the circuit borrowed by the patients: reception, preparation, transfer or waiting.
- Allows the injection of the patient while sitting in the preparation room.
- Prevents the transfer of the patient from a non-magnetic stretcher or a sampling chair to the TRIPLAN stretcher.
- Space saving storage thanks to its compact dimensions in armchair position.
TECHNICAL DATA :
- Stretcher compatible with MR equipments up to 3 Tesla
- Chest and leg support assisted by gas cylinder
- Handles at the head of the chair
- Aluminum structure coated with epoxy paint
- Adjustable height 520 - 800mm per hydraulic cylinder
- Hydraulic foot control
- 4 wheels diameter 125mm with brake
- Overall dimensions in the extended position: L. 1950 x W. 600 x H. 520mm
- Dimensions of the seat: L. 500 x W. 600mm
- Seating dimensions: L. 1950 x W. 600
- Maximum load capacity 160 Kg
- Delivered as standard with two removable safety barriers
- Saddlery with removable cover M1 blue color treated antibacterial
- MR CONDITIONAL
CERTIFICATIONS:
- EC 93/42 / EEC
- Class 1 medical device
The non-magnetic TRIPLAN stretcher has been specially developed to rapidly and with minimal effort to convert the device from stretcher to chair.
To ensure patient comfort, the TRIPLAN stretcher is equipped with a 50mm thick foam mattress covered with a removable protective cover and two removable safety barriers.
PRODUCT ADVANTAGES:
- Allows patients to be transported in a sitting or lying position.
- Can be used at any time of the circuit borrowed by the patients: reception, preparation, transfer or waiting.
- Allows the injection of the patient while sitting in the preparation room.
- Prevents the transfer of the patient from a non-magnetic stretcher or a sampling chair to the TRIPLAN stretcher.
- Space saving storage thanks to its compact dimensions in armchair position.
TECHNICAL DATA :
- Stretcher compatible with MR equipments up to 3 Tesla
- Chest and leg support assisted by gas cylinder
- Handles at the head of the chair
- Aluminum structure coated with epoxy paint
- Adjustable height 520 - 800mm per hydraulic cylinder
- Hydraulic foot control
- 4 wheels diameter 125mm with brake
- Overall dimensions in the extended position: L. 1950 x W. 600 x H. 520mm
- Dimensions of the seat: L. 500 x W. 600mm
- Seating dimensions: L. 1950 x W. 600
- Maximum load capacity 160 Kg
- Delivered as standard with two removable safety barriers
- Saddlery with removable cover M1 blue color treated antibacterial
- MR CONDITIONAL
CERTIFICATIONS:
- EC 93/42 / EEC
- Class 1 medical device
- Material
- Acier inoxydable
- Coating
- Peinture laquée
- Colors
- Blanc/Bleu
- UGAP reference
- 2795090
- Length mm
- 1950
- Width mm
- 600
- Height mm
- 520-800
- Casters
- 4 Roues D125mm
- Maximum admissible weight kg
- 150
- Additional Information
- 2 CROCHETS / COMPATIBLE 3 TESLA
- Gross weight
- 7
- Net weight
- 5
