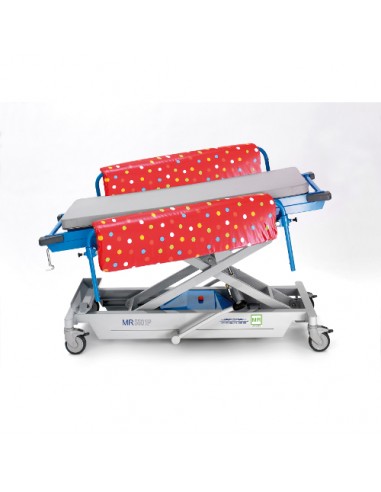

Non-magnetic paediatric adjustable height stretcher with trendelenburg 13°
The MR Adjustable Height Trolley is fully tested at 7 Tesla.
With Trendelenburg supplied as standard (maximum 13°), the weight bearing capacity has significantly increased to 220 kg (490 lbs).
Features include:
. 13° Trendelenburg position
. Hydraulic dual pedal pump for ease of elevation and patient comfort
. Folding cot sides
. Flame retardant, high density mattress in a wipe clean material
. welded seams mattress to prevent the spread of infection
. Power assisted adjustable backrest
. Trolley fitted with corner buffering for protection
. Fitted with non-marking, 150mm low rolling castors and foot operated brakes
. IV pole with four fixing points as standard
. Finished in hardwearing epoxy powder coating
Optional extra:
. Oxygen Cylinder Holder
Dimensions:
Overall size of top section:
.Length: 1710mm Width: 680mm
Overall size of base:
. Length: 1475mm Width: 610mm
Adjustable height:
. Maximum height: 945mm
. Minimum height: 495mm
Mattress Thickness: 50mm
Cot Side: Length:1150mm Height:225mm
Trendelenburg 13° supplied as standard
Maximum load capacity 220 kg (490 lbs).
Tested to 7 Tesla
CE MarkedE
With Trendelenburg supplied as standard (maximum 13°), the weight bearing capacity has significantly increased to 220 kg (490 lbs).
Features include:
. 13° Trendelenburg position
. Hydraulic dual pedal pump for ease of elevation and patient comfort
. Folding cot sides
. Flame retardant, high density mattress in a wipe clean material
. welded seams mattress to prevent the spread of infection
. Power assisted adjustable backrest
. Trolley fitted with corner buffering for protection
. Fitted with non-marking, 150mm low rolling castors and foot operated brakes
. IV pole with four fixing points as standard
. Finished in hardwearing epoxy powder coating
Optional extra:
. Oxygen Cylinder Holder
Dimensions:
Overall size of top section:
.Length: 1710mm Width: 680mm
Overall size of base:
. Length: 1475mm Width: 610mm
Adjustable height:
. Maximum height: 945mm
. Minimum height: 495mm
Mattress Thickness: 50mm
Cot Side: Length:1150mm Height:225mm
Trendelenburg 13° supplied as standard
Maximum load capacity 220 kg (490 lbs).
Tested to 7 Tesla
CE MarkedE
- Material
- Aluminium
- Coating
- Peinture laquée
- Colors
- Gris/Bleu
- Length mm
- 1710
- Width mm
- 680
- Height mm
- 495-945
- Thickness mm
- 50
- Casters
- 4 Roues D150mm
- Maximum admissible weight kg
- 220
- Packing
- 184x76x88cm
- Additional Information
- 7t comp/déclive 13°/max 220kg
- Gross weight
- 155
- Net weight
- 80
402124
