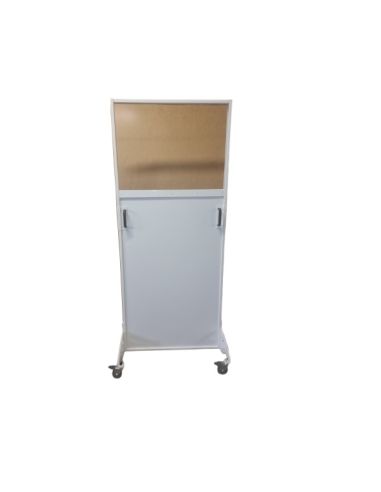

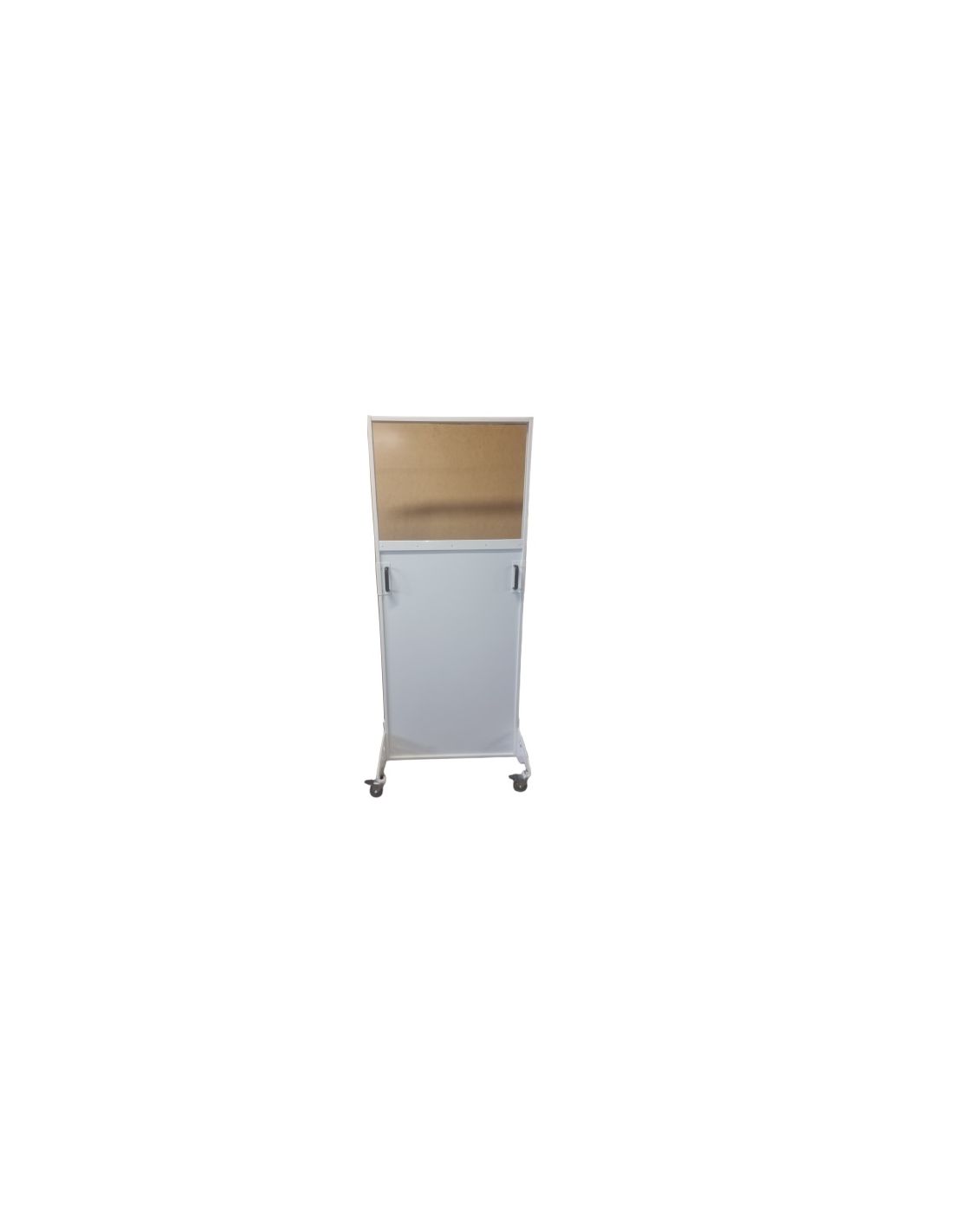

Mobile x-ray barrier with panoramic shield glass width 100cm
Mobile x-ray barrier lead 2mm for the protection of workers exposed to ionizing radiation in radiology rooms or operating theaters.
The panoramic x-ray barrier comes with a panoramic x-ray shield glass height of 60cm or 80cm allowing vision across the width of the screen.
TECHNICAL DATA:
- Equivalence lead 2mm
- White laminated panel with core lead
- Lacquered steel frame
- Shield glass LxH 100x60cm or 100x80cm
- Shield glass Pb equivalent 2.1mm
- Width 100cm
- Height 198cm
- 4 castors diameter 75mm without brake
- Wooden crate packing
- Weight with glass 60cm: 112Kg
- Weight with glass 80cm: 119Kg
The panoramic x-ray barrier comes with a panoramic x-ray shield glass height of 60cm or 80cm allowing vision across the width of the screen.
TECHNICAL DATA:
- Equivalence lead 2mm
- White laminated panel with core lead
- Lacquered steel frame
- Shield glass LxH 100x60cm or 100x80cm
- Shield glass Pb equivalent 2.1mm
- Width 100cm
- Height 198cm
- 4 castors diameter 75mm without brake
- Wooden crate packing
- Weight with glass 60cm: 112Kg
- Weight with glass 80cm: 119Kg
- Lead equivalence mm
- 2
- Material
- Bois plombé
- Coating
- Bois laminé
- Colors
- Blanc
- UGAP reference
- 2094414
- Width mm
- 800
- Height mm
- 1980
- Casters
- 4 Roulettes D50mm
- Packing
- Palette renforcée 1200x800x2114
- Gross weight
- 162
- Net weight
- 112
