This lower body shield substantially reduces exposure to scatter radiation emanating from the table or patient’s body.
The shield comprises a lightweight and durable structure, with a central friction maintaining pivot link and pivotal arm supporting a flexible lead curtain.

FEATURES
· The shield easily mounts to either side of the table allowing the pivotal arm to always face the head end.
· A 28 cm wide attachment bracket slides onto a 25 mm high or 29 mm high tableside accessory rail (max. 11 mm thick).

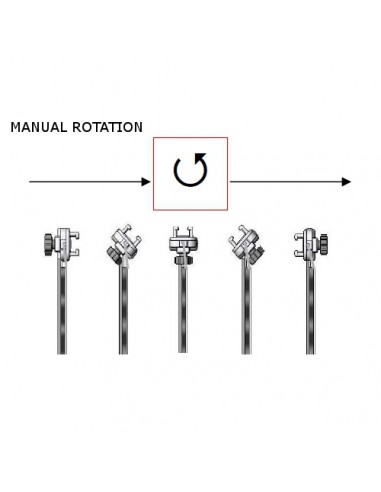

· The central pivot has an automatic wear adjustment facility ensuring accurate joint friction which prevents unwanted curtain movement even when the table is tilted in any direction.
. Low weight : 4,2 Kg

FLEXIBLE X-RAY PROTECTIVE CURTAINS
· The curtain forms a large (78 cm wide x 70 cm high) safe zone of occupancy for the Radiologist (or Cardiologist).
· The curtain forms around an under table x-ray tube without impeding movement.
· The curtains inner 0.5mm lead equivalent layer is bonded to its outer covering. As the protective layer is not suspended separately in a cover (bag), it cannot tear or fall away inside unnoticed.
· The pivotal arm and central pivot can swivel outwards from the table side to form a 50 cm wing.
