Steel chair 3mm 800/1200 adjustable for PORTEGRA ceiling suspension Embase wide side ceiling 400x400mm
[CEILING MOUNTING CHAIR FOR PORTEGRA COLUMN]
Adjustable mounting chair for installation of a PORTEGRA II or PORTEGRA 360 column when the ground / ceiling distance is higher than 3.25m.
The chair, built in two parts, is adjustable in height and allows an extension between 800 and 1200mm.
The chair allows the installation of suspensions under ceilings up to 4.50m
TECHNICAL DATA :
- Adjustable height min. 800mm to max. 1200mm
- Steel 3mm with white epoxy paint
- Chair in two nestable parts

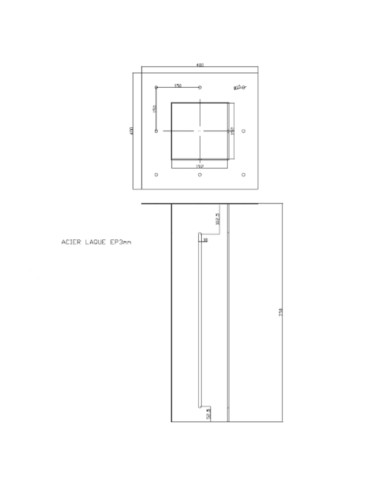

- Dimensions of the top plate: 400x400mm
- Dimensions of the bottom plate: 200x200mm
- Fixing ceiling side by 8 holes diameter 10mm (distance between centers 150mm)
- Column-side mounting with 4 threaded inserts M10
- Weight : 18 Kg
Adjustable mounting chair for installation of a PORTEGRA II or PORTEGRA 360 column when the ground / ceiling distance is higher than 3.25m.
The chair, built in two parts, is adjustable in height and allows an extension between 800 and 1200mm.
The chair allows the installation of suspensions under ceilings up to 4.50m
TECHNICAL DATA :
- Adjustable height min. 800mm to max. 1200mm
- Steel 3mm with white epoxy paint
- Chair in two nestable parts
- Dimensions of the top plate: 400x400mm
- Dimensions of the bottom plate: 200x200mm
- Fixing ceiling side by 8 holes diameter 10mm (distance between centers 150mm)
- Column-side mounting with 4 threaded inserts M10
- Weight : 18 Kg
- Material
- Acier
- Coating
- Peinture époxy
- Colors
- Blanc
- UGAP reference
- 3045836
- Length mm
- 400
- Width mm
- 400
- Height mm
- 800-1200
- Thickness mm
- 0.3
- Net weight kg
- 18,00
- Gross weight kg
- 20,00
- CE
- Sans certification
117521
