    [CEILING MOUNTING PLATE FOR PORTEGRA COLUMN]

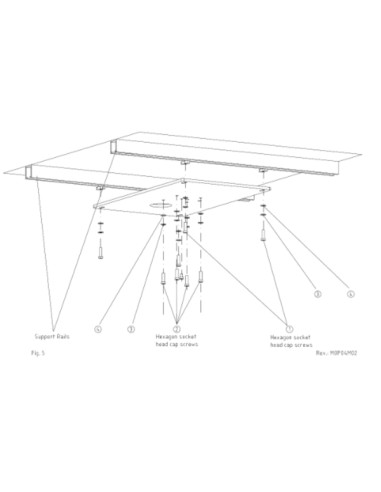

    Mounting plate for attaching a PORTEGRA II or PORTEGRA 360 column to the ceiling on a concrete slab or on Halfen rails with 650mm spacing

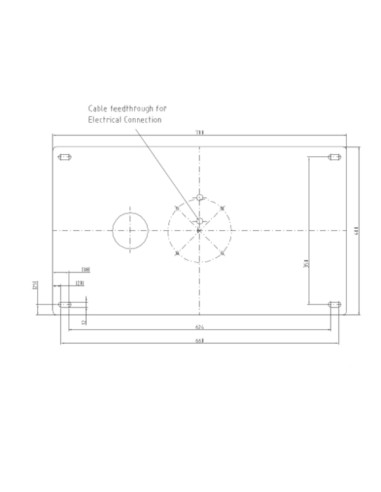

    Dimensions of the plate: 700x400mm
    Material: Steel
    Coating: White epoxy paint
    Weight:24 Kg
    Material
    Acier
    Coating
    Peinture époxy
    Colors
    Blanc
    UGAP reference
    3045835
    Length mm
    700
    Width mm
    400
    Thickness mm
    10
    Net weight kg
    24,00
    Packing
    98x9x50cm
    Gross weight kg
    25,00
    CE
    Sans certification
