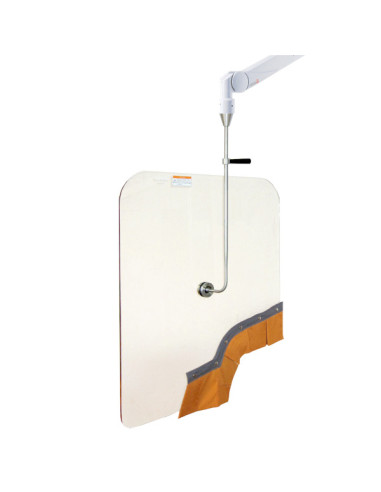

HIGH PERFORMANCE LEAD ACRYLIC SHIELD WITH PATIENT CONTOUR CUTOUTS

Modern X-ray protection for todays applications, particularly for the increase of radial access and longer interventional procedures:

Recent studies have shown that a significant amount of radiation is emitted not only through the gap between the patient and shield, but also from the patient itself.

Even if the shield sits directly on top of the patient, radiation travels under the shield through the patient and is then released. To combat this, flexible strips were added to the bottom of the shield.

The special design and the flexibility of the curtain allows it to perfectly adapt to the patients body without producing gaps between the strips, reducing the scatter radiation emitting from the patients body in the direction of the user.

Additionally, the second patient cutout in combination with the flexible strips ensures optimal radiation protection during femoral, as well as radial access procedures.



Technical data
. Lead acrylic shield with patient contour cutouts and X-ray protective strips
. Shield dimensions : 90 x 78 cm (H x W)
. Lead equivalency Pb 0.50 mm
. Centrically guided by connecting element Weight incl. X-ray protective strips: 15.0 kg

Disposable for screen :
.Box of 50 sterile,semi-transparent disposable size 900 x 1200 mm for lead screen

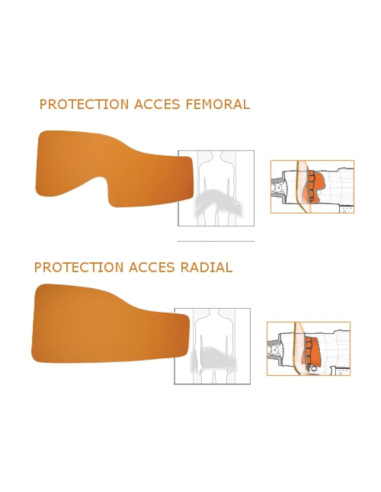

Flexible X-Ray patient Protection
. Femoral X-Ray protective Drape, with Cut-Out
. Lead Equivalency : 0,5mm
. Lenght 75cm
. Box of 50 sterile,semi-transparent disposable covers for Femoral drape

. Radial X-Ray protective Drape, without Cut-Out
. Lead Equivalency : 0,5mm
. Lenght 75cm
. Box of 50 sterile,semi-transparent disposable covers for Femoral drape
