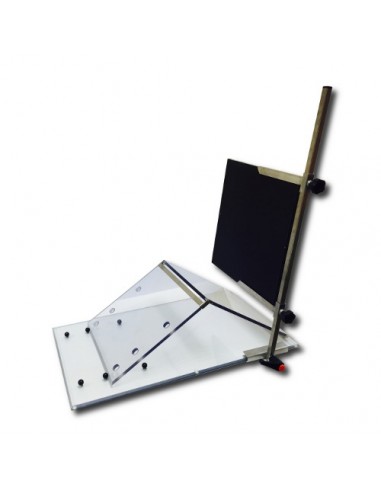

Patellofemoral joint examination device holder 30° 60° and 90° with sensor stand
Medical x-ray device specially designed for examination of the Patellofemoral joint.
Turns very quickly the patient knee in position 30 °, 60 ° and 90 °.
Installation is fast and accurate, you slide under the patient's knee, then you set the desired angle.
With the DFP device, you have three possibilities to maintain the detector
1 - The patient holds the sensor. Remove the sensor stand for that choice.
2 - You position the accessory sensor stand. We recommend that choice for a better patient protection against direct x-ray beam. Stand for x-ray cassettes and DR sensors up to 14mm thickness max and 3Kg max.
3 - You use the mobile support "EASY-'X" (in option). For any sensor up to 3 Kg. In addition, it will serve you for many other x-ray examinations.
TEHNICAL DATA :
PATELLOFEMORAL JONT DEVICE
Length: 680 mm.
Width: 320 mm
Curb Weight: 5.6 Kg.
Material: Polycarbonate 10 mm.
MRI Compatible (Zamak hinge, stainless steel screws A4)
SENSOR HOLDER
Material: nickel plated steel.
Weight: 2 Kg
Fixing on DFP by two manual buttons
Tightening inclination by handle 1/4 turn
Height: 755 mm
Jaws length: 200mm
Useful jaw width: 15mm (sensor 14mm maximum)
Option:
Mobile sensor holder POLYVALENT
Turns very quickly the patient knee in position 30 °, 60 ° and 90 °.
Installation is fast and accurate, you slide under the patient's knee, then you set the desired angle.
With the DFP device, you have three possibilities to maintain the detector
1 - The patient holds the sensor. Remove the sensor stand for that choice.
2 - You position the accessory sensor stand. We recommend that choice for a better patient protection against direct x-ray beam. Stand for x-ray cassettes and DR sensors up to 14mm thickness max and 3Kg max.
3 - You use the mobile support "EASY-'X" (in option). For any sensor up to 3 Kg. In addition, it will serve you for many other x-ray examinations.
TEHNICAL DATA :
PATELLOFEMORAL JONT DEVICE
Length: 680 mm.
Width: 320 mm
Curb Weight: 5.6 Kg.
Material: Polycarbonate 10 mm.
MRI Compatible (Zamak hinge, stainless steel screws A4)
SENSOR HOLDER
Material: nickel plated steel.
Weight: 2 Kg
Fixing on DFP by two manual buttons
Tightening inclination by handle 1/4 turn
Height: 755 mm
Jaws length: 200mm
Useful jaw width: 15mm (sensor 14mm maximum)
Option:
Mobile sensor holder POLYVALENT
- Packing
- Carton 70x50x20cm
- Additional Information
- ANGLES : 30° 60° 90°
- Gross weight
- 9
- Net weight
- 7,6
