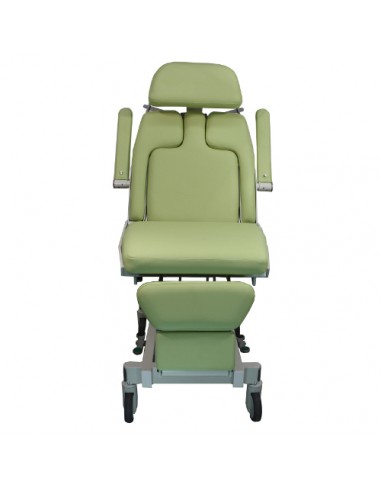

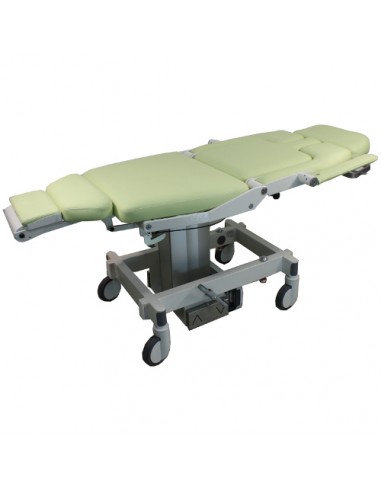

Mobile mammography andstereotaxy chair
Patient chair for patient transport and positioning for mammography screenings and stereotaxie procedures.
The infinitely variable back rest, 2 individually adjustable segments in the back rest and the height adaptable head cushion support any desired position for these procedures.
Individually adjustable backrest segments/arm supports for lateral orientation “park bench position”.
Height adjustable head rest.
In critical situations the Trendelenburg position is available in just seconds.
Technical Data :
* Length wheel base (backrest up) : 76 cm
* Width wheel base : 58 cm
* Height with backrest up right : 144 cm
* Length in couch position : 168 cm
* Width total : 76 cm
* Width Cushion : 62 cm
* Width headrest : 16 cm
* Seat Height min./max. : 68 cm / 98 cm
* Back rest movement : 90° - 180°
* Segment movement : 40°
* Trendelenburg : -15°
* Wheels diameter : 125 mm, with 3 brake system possibilities :
- all wheels swivelling
- one wheel locked
- all wheels locked
* Weight of the chair: 95 KG
* Max. Patient weight : 135 kg
Electrical Data :
* Battery : 24 Volt
* Line power for re charger : 100-240 Volt
* Recharging time required : 4h
* Nominal frequency : 50-60 Hz
* Nominal power : 400 mA
* Fuse : T1,25//250 A/H/V
* Protection category : IP65
* Continuous operation of electric motors : 6 min
The infinitely variable back rest, 2 individually adjustable segments in the back rest and the height adaptable head cushion support any desired position for these procedures.
Individually adjustable backrest segments/arm supports for lateral orientation “park bench position”.
Height adjustable head rest.
In critical situations the Trendelenburg position is available in just seconds.
Technical Data :
* Length wheel base (backrest up) : 76 cm
* Width wheel base : 58 cm
* Height with backrest up right : 144 cm
* Length in couch position : 168 cm
* Width total : 76 cm
* Width Cushion : 62 cm
* Width headrest : 16 cm
* Seat Height min./max. : 68 cm / 98 cm
* Back rest movement : 90° - 180°
* Segment movement : 40°
* Trendelenburg : -15°
* Wheels diameter : 125 mm, with 3 brake system possibilities :
- all wheels swivelling
- one wheel locked
- all wheels locked
* Weight of the chair: 95 KG
* Max. Patient weight : 135 kg
Electrical Data :
* Battery : 24 Volt
* Line power for re charger : 100-240 Volt
* Recharging time required : 4h
* Nominal frequency : 50-60 Hz
* Nominal power : 400 mA
* Fuse : T1,25//250 A/H/V
* Protection category : IP65
* Continuous operation of electric motors : 6 min
- Material
- Acier
- Coating
- Peinture époxy
- UGAP reference
- 2106789
- Length mm
- 1680
- Width mm
- 760
- Height mm
- 680-980
- Casters
- 4 Roues D125mm
- Maximum admissible weight kg
- 130
- Packing
- 1.20 x 0.80 x 1.55
- Gross weight
- 110
- Net weight
- 95
