Cardiology Table Carbon Plate Flare 220x54cm- Max Load 230 kg adjustable Height 80 to 120cm
Cardiology table carbon plate Flare - max load 230 kg

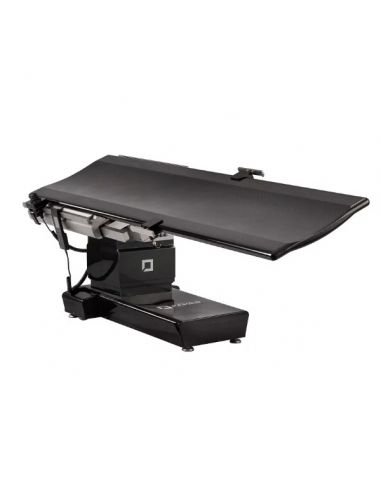

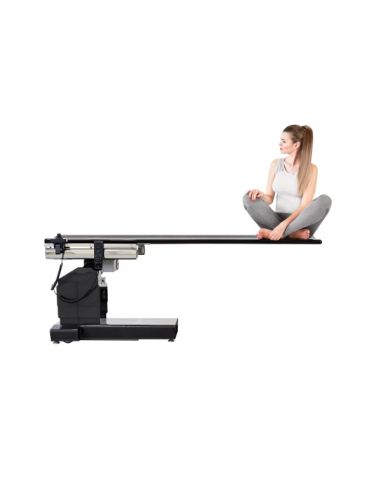

The Flare table is a table with an ultra-thin, ergonomic and profiled floating carbon top.

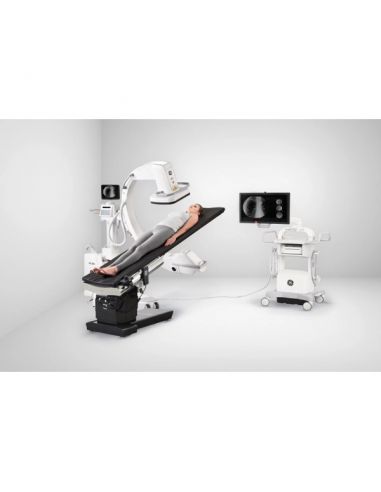

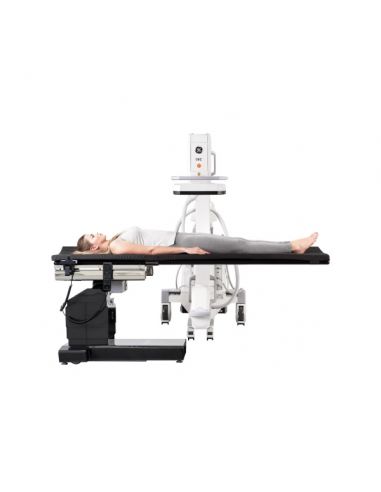

The tray is adjustable in height, in longitudinal, lateral movement, trendelenbourg and reverse trendelenburg and lateral tilting allow the table to be used during cardiovascular surgery, neurosurgery, urological surgery, orthopedic pain treatment or spine and endoscopic treatments.
The arrangement of carbon fibers according to TotalClear ™ technology, allows to certify a translucency parameter of 0.36 mmAI allowing to reduce the visible interference on the X-RAY view and to reduce radiation exposition.
A 40mm thick memory foam mattress equips the table as standard.
The table can be easily moved by a system of 3 retractable wheels.
The table is fitted with a control joystick as standard and can optionally be fitted with a rechargeable wireless remote control, a foot remote control and a detachable control panel on the column.
A 720mm rail located on either side of the feet part of the tray allows to fix various accessories.
Technical characteristics:
- Length: 2200 mm
- Width: 540 mm
- Maximum load: 230 kg
- Height: From 800 to 1200mm

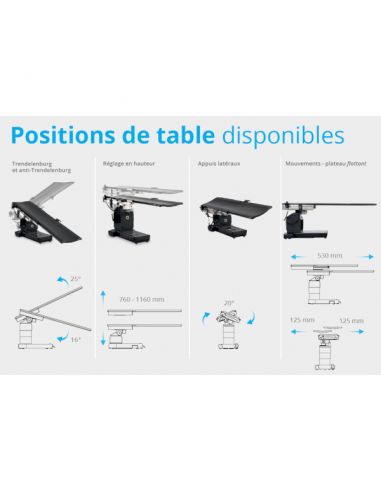

- Longitudinal sliding: 530 mm
- Lateral sliding: 125 mm on either side of the axis.
- Lateral tilting: +/- 20 °
- Trendelenburg / inverted: 16 ° / 25 °
- 220 Volts connection, 24 Volts battery.
The Flare table is a table with an ultra-thin, ergonomic and profiled floating carbon top.
The tray is adjustable in height, in longitudinal, lateral movement, trendelenbourg and reverse trendelenburg and lateral tilting allow the table to be used during cardiovascular surgery, neurosurgery, urological surgery, orthopedic pain treatment or spine and endoscopic treatments.
The arrangement of carbon fibers according to TotalClear ™ technology, allows to certify a translucency parameter of 0.36 mmAI allowing to reduce the visible interference on the X-RAY view and to reduce radiation exposition.
A 40mm thick memory foam mattress equips the table as standard.
The table can be easily moved by a system of 3 retractable wheels.
The table is fitted with a control joystick as standard and can optionally be fitted with a rechargeable wireless remote control, a foot remote control and a detachable control panel on the column.
A 720mm rail located on either side of the feet part of the tray allows to fix various accessories.
Technical characteristics:
- Length: 2200 mm
- Width: 540 mm
- Maximum load: 230 kg
- Height: From 800 to 1200mm
- Longitudinal sliding: 530 mm
- Lateral sliding: 125 mm on either side of the axis.
- Lateral tilting: +/- 20 °
- Trendelenburg / inverted: 16 ° / 25 °
- 220 Volts connection, 24 Volts battery.
- Material
- Acier inoxydable
- Coating
- Carbone
- Length mm
- 2200
- Width mm
- 540
- Height mm
- 800-1200
- Thickness mm
- 40
- Maximum admissible weight kg
- 230
- Net weight kg
- 250,00
- Packing
- CARTON/PAL 227X71X101cm
- Gross weight kg
- 340,00
- CE
- DM Classe 1
313500
