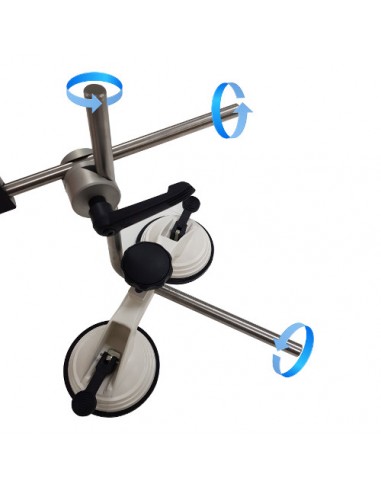

Suction cup socket holder for cassette or flat panel 24x30
Adjustable holder mounted on a double suction cup for a perfect fixation on the radiology table.
The holder allows the upkeep and positioning of a radiology cassette, a CR cassette or a flat panel up to 24x30cm.
The design of the suction cup holder allows the realization of complex images (extremities, knee ...) in medical imaging.
Settings:
Height of the vertical rod: 30cm
Length of the horizontal rod: 30cm
Sensor holder rod length: 20cm
3D central clamping nuts
Clamping wheel on the suction cup
Technical data :
Max sensor thickness: 25mm
Height of the sensor: 255mm
Max sensor height: 270mm
Double suction cup: 2x Diam. 120mm
Length of the suction cup: 330mm
Weight : 2.7Kg
The holder allows the upkeep and positioning of a radiology cassette, a CR cassette or a flat panel up to 24x30cm.
The design of the suction cup holder allows the realization of complex images (extremities, knee ...) in medical imaging.
Settings:
Height of the vertical rod: 30cm
Length of the horizontal rod: 30cm
Sensor holder rod length: 20cm
3D central clamping nuts
Clamping wheel on the suction cup
Technical data :
Max sensor thickness: 25mm
Height of the sensor: 255mm
Max sensor height: 270mm
Double suction cup: 2x Diam. 120mm
Length of the suction cup: 330mm
Weight : 2.7Kg
- Packing
- Carton 300x400x200mm
- Gross weight
- 3,4
- Net weight
- 2,7
